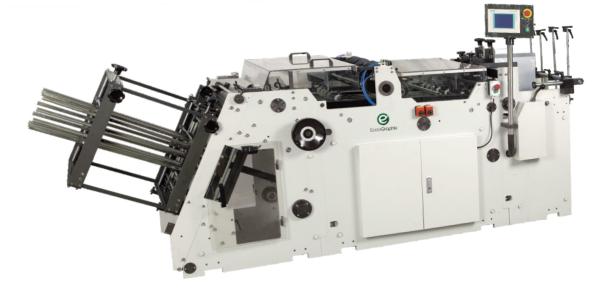

Hamburger Food Box Automatic Carton Erecting Forming Machine
EcooGraphix is a professional supplier of eco-friendly paper processing machines and paper products. Following the enterprise development mission of “Create Value for Customers”.
At the beginning of 1990s, the production of snack boxes (such as ice cream paper cone, hamburger box, etc.) mainly relied on manual operation or machines imported from Europe and North America. The poor sanitary condition, low product consistency, low efficiency, expensive imported machines, long delivery period and high service cost all restricted the development of domestic paper production enterprises. However, Chinese national industries still developed rapidly and Dayuan was resolute to enter this completely new industry.
Our machine advantage :
1.High speed production, high efficiency
Description:Pasting box, folding edge, and pressure the bubble is completed in one go. Greatly improved the production efficiency of the hardcover box .High quality and reduce the production cost.
2.Versatile, multi-purpose
Description:Useful for making high quality sandwich box, cake tray, pastry tray, salad box etc.
3.Hot melt adhesive, good viscosity
Description:Hot melt adhesive automatic circulation, mixing, gluing system, automatic transfer of hot melt adhesive tape.
4.Fully automatic intelligent operation
Description:PLC programming technology,Photoelectric tracking system,Touch screen man-machine interface.
5.Imported parts, stable and reliable quality
Description:Imported electrical components and drive system for stable performance and reliable quality.
Technical Specification
1.Voltage: 380V/50HZ
2.Covering Area: 4.0M*1.2M
3.The total Power: L800-A:8KW
L800-C:5KW
4.Maximum Production Speed: 200 pcs/min
5.Ai「P「essu「e:0_6Mpa(Dryandclean compressed air)
6.Packing:
2980mm* 1560mm* 1320mm,
N.W.: 1500KG,G.W.: 1600KG 1310mm*1170mm*900mm,
N.W.: 250KG,GAN.: 290KG
7.Materials: Paper Board 200-600gsm; corrugated board paper with thickness not exceed 1.5MM.
The differences between L800-A and L800-C:
1.L800-A adopts servo system to control the punching head,but L800-C adopts mechanical device to control the punching head,so L800-A iseasier to change different box than L800-C.
2.L800-A is better to make eight corners boxes than L800-C.
| Machine type | L800-A |
| Blank length | L | 100mm-450mm |
| Blank width | B | 100mm-630mm |
| Height of side flaps | H | 15mm-250mm |
| Height of side flaps+lid | HI | 50mm-250mm |
| Conicity | | 5°-40° |
