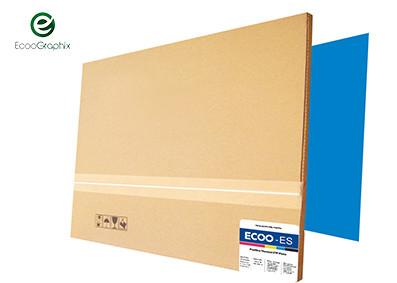

Single layer Positive Thermal CTP Printing offset plate

Name: Single layer Positive Thermal CTP Printing offset plate
Brand: Ecoographix
Price: 1 USD

Single layer Positive Thermal CTP Printing offset plate Manufactures

Brand Name : Ecoographix

Model Number : ECOO-ES

Certification : iso/ce

Place of Origin : China

MOQ : 1000 sqm

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 5000000 sqm per year

Delivery Time : 20-30 days

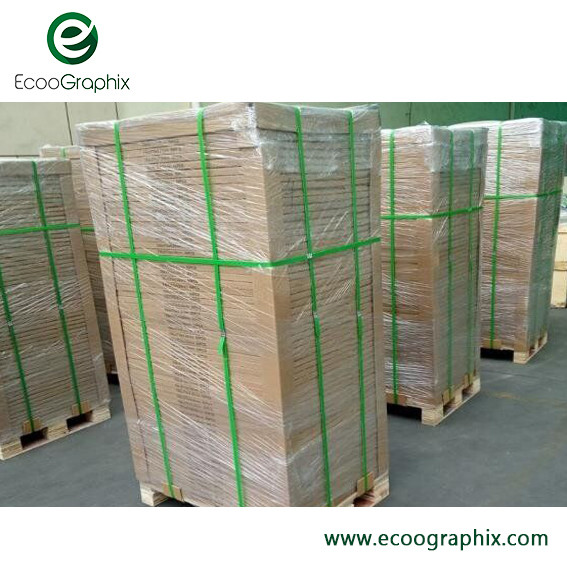

Packaging Details : 50 pcs in a carton, 50 carton on a pallet, standard exporting package

Thickness : 0.15 mm, 0.30 mm, 0.40 mm

Plate processing energy : 140 mj/m²

Screem : 1-98@ 200 lpi AM/FM and mixture

image setter : Mainstream CTP brands

Developer : Workable with most mainstream developer

Running length : 60000 impresssion

Laser wavelength : 830 nm

Shelflife : 12 months

Color : blue

Contact Now

This thermal CTP Plate(Single Layer) is able to meet various requirements of high grade commercial and newspaper printing. It has the advantages of fast plate making speed, high tolerance level, precise half-tone dot reproduction, good ink balance and high press run length, and good price. But if you use UV ink and vanish, and fluently make long printing jobs, this plate is not suitable. It is better to try our ECOO-ED and ECOO-TSR.

Specification

Model	ECOO-ES
Plate Type	Positive Thermal CTP Plate
Application	High grade commercial and newspaper printing
Substrate	Electro chemically Grained and Anodized lithographic Aluminum
Aluminum alloy	Standard 1050 Alloy
Coating	Single-layer coating, IR sensitive
Gauge	0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width	Maximum width 1280 mm
Plate intermix	Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length of Run	Unbaked: 80000 to 100,000 impressions
	Baked: Over 100000 impressions
Exposing
Plate setters	Kodak Trendsetter/Lotem/Magnus; Fuji Javelin T9000HS; Heidelberg Topsetter/Suprasetter; Screen PT-R; Creo Scitex , or EcooGraphix thermal CTP T series
Exposure energy	90 - 120 mj /cm²
Spectral Sensitivity	800-850 nm – Peaks 830nm
Resolution	1-99% at 300 LPI
FM capability	20 micron stochastic
Image color	Blue

Develop and processing

Processor	All Brands.
Developer	Kodak Gold Star or our own developer
Processing temperature	23°C +/- 2°C
Developing time	25 - 30 sec

Recommended Image Data

CTP model Data	Kodak trendsetters	LOTTEM 400(TH1.7)	MAGNUS 400	Screen 8600S
Laser power	13-15W	270-280mw	17-19W	70-80 %
Drum speed	250-300rpm	850-900rpm	400-450rpm	800-900rpm
Resolution	Customized	Customized	Customized	Customized
Parameter that need set up	Focus／ Zoom	Focus／ Zoom	Focus／ Zoom	Focus／ Zoom

*Note: Higher exposure energy will make the image contrast more clear, and benefit to the plate run length; while over high/low exposure energy will affect the image quality negatively.

Application
Suitable for sheet-fed offset press without UV ink, vanish.
Run length: 60000-100000 impressions
Suitable for different types of traditional inks and fountain solutions, commercial printing, newspaper printing and package printing.

Transpotation and storage
Packed in seal and stored by means of preventing from light/moisture, over heat and high humidity.
Recommended conditions: 18ºC-24ºC, 40%-50% RH
Avoid saliva, water stains, water mist and other aqueous solution contaminating the plate surface before plate-making.
If the plates can not be used up after unpacking right away, the rest should be put into the original package, then seal it to prevent from moisture.
Single layer Positive Thermal CTP Printing offset plate
Q&A for plate products
1. How long is the lead time?
The lead time is normally 30 days.
2. Do you offer free plate samples?
Yes, we offer free testing samples maximum 12 pcs for each size but with delivery fee collect.
3. How do you guarantee stable quality?
There are 3 inpecting procedures: 1, automatic on-line 24h scanning detector; 2, random sampling per 15 mins at the producing line; 3, manually full inspection before packing.
4. Do you have accompanying plate making products to enable one-stand easy purchase for some end users?
Yes. CTP machine, processors, developers, ink, blanket and some common fihishing machines are also within our category.
5. Payment term
Normally, 30% deposit, 70% before shipping.
