Long Runs Positive Convention CTP/UV-CTP/CTCP Offset Plate
1. Application
EcooGraphix CTCP Plate can be used for long runs high grade commercial and newspaper printing. Unique production technology and high quality raw materials make the plate gain high photosensitive speed, good half-tone dot reproduction and stable performance.
2. Characteristic
1) High quality aluminum and photosensitive coating.
2) Multi layer composite grain structure.
3) Precise half-tone dot reproduction.
4) High development tolerance level and convenient operation.
3. Specification
| General Information |
| Plate Model | ECOO-CTCP-ES |
| Plate Type | Positive CTCP Plate(Single Layer) |
| Application | High quality commercial and newspaper printing |
| Substrate | Electro chemically grained and Anodized lithographic aluminum |
| Aluminum alloy | Standard 1050 Alloy |
| Gauge | 0.15, 0.20, 0.25, 0.30, 0.40 mm |
| Maximum short grain width | Maximum width 1280 mm |
| Length of Run | Unbaked: 80000 to 100,000 impressions Baked: Over 100000 impressions |
| Exposing |
| Plate setters | Luscher, Basysprint, Cron, EcooGraphix UV series CTCP machine |
| Exposure energy | 50 - 70 mj/cm² |
| Spectral Sensitivity | 400 - 430 nm - UV Laser |
| Resolution | 2 - 99% @LPI 200 |
| Photosensitive Wave Length | 405nm |

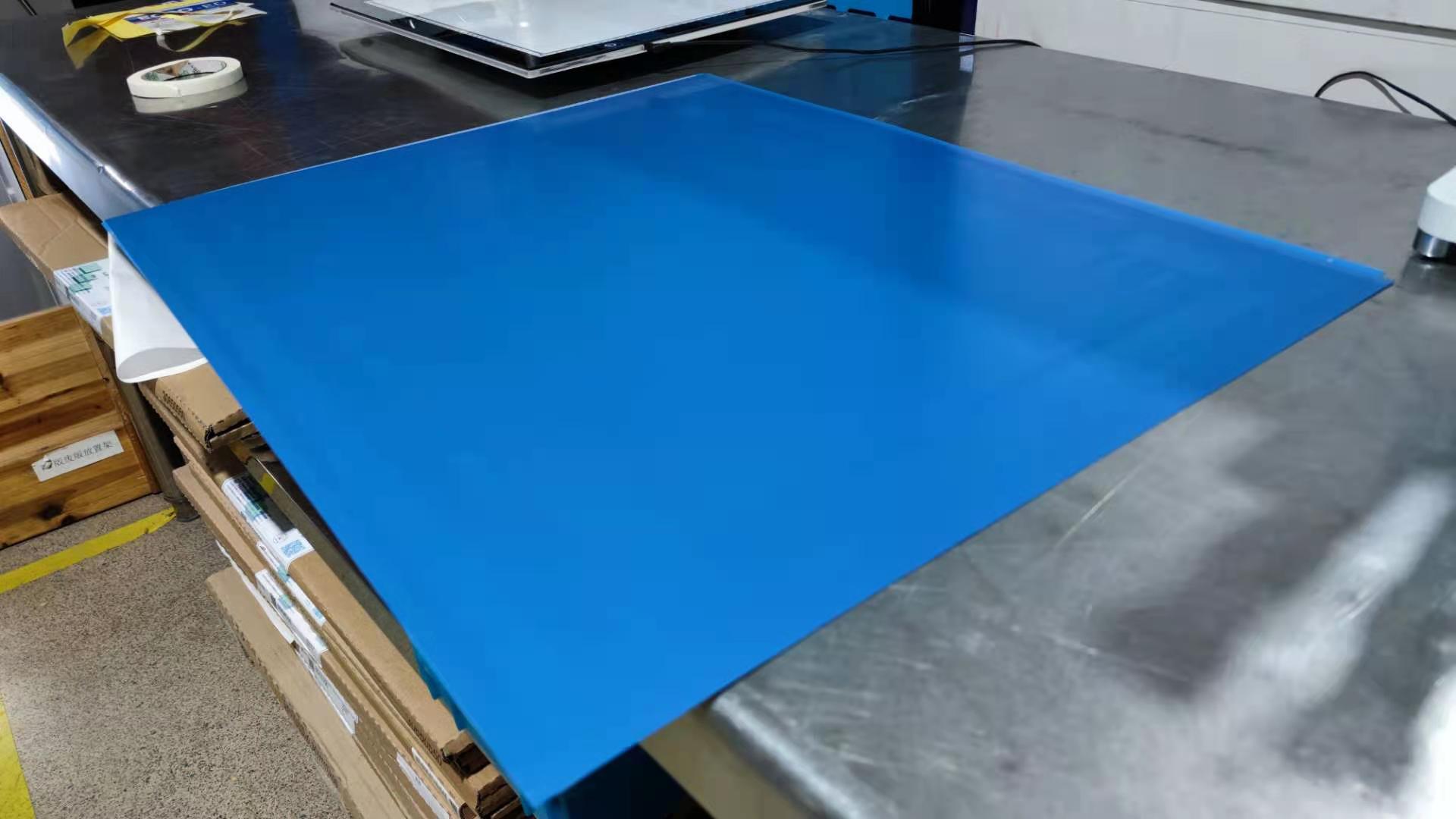

| Coating | Blue |
| Developing |
| Processor | All the kind Brands |
| Developer | Any CTCP plate developer or our own developer |
| Processing temperature | 23°C +/- 2°C |
| Developing time | 25 - 30 sec |
| Processing Speed | 0.80 - 1.20 m/min |
| Storage And Handling |
| Safelight | Handle under yellow safelight (UV free) |
| Shelf Life | 12 months under recommended storage conditions |

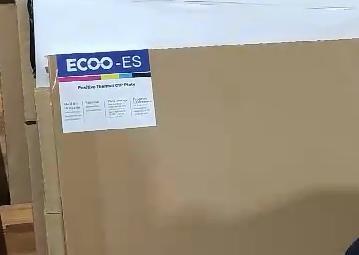

| Packaging | Available in all standard formats, including bulk packaging options, such as APL packaging |
| Storage and handling | Stored in a cool and dry environment, away from excessive cold, heat and humidity |

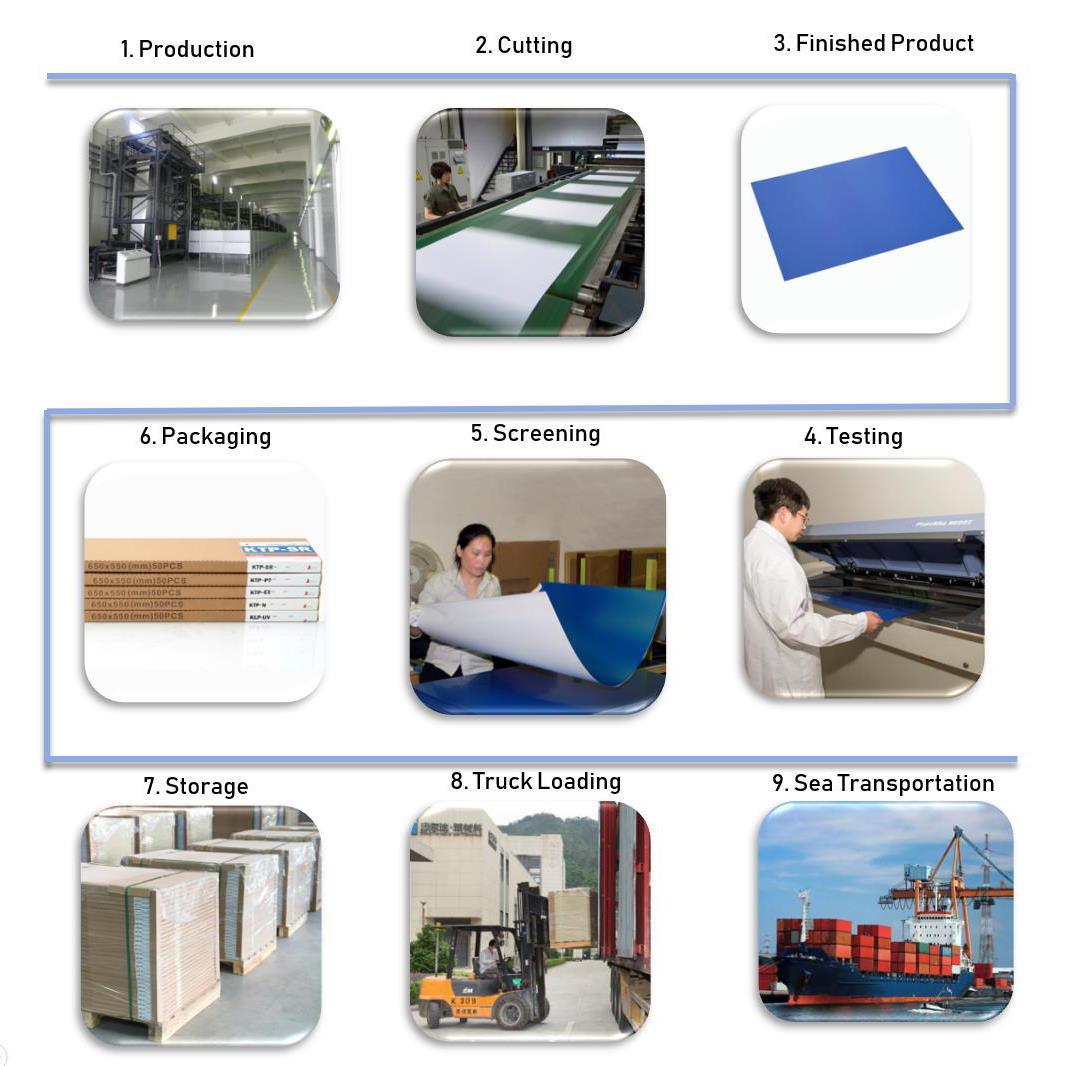

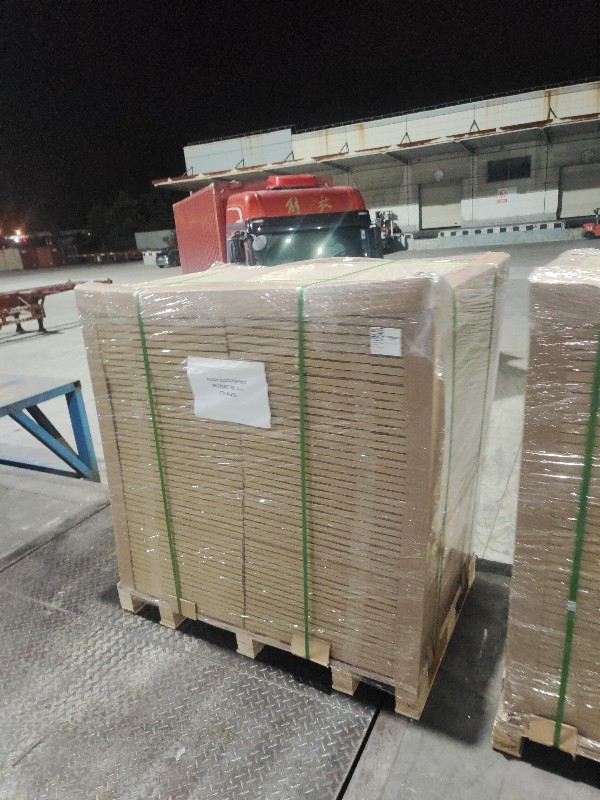

4. Producing and Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
5. Certificates
6. FAQ
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20’ container ?
A: About 20000-25000SQM.
Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer’s brand and label.
