Brief introduction
EcooGraphix Printing Blanket is suitable for printing of coated papers, carton boards and the like. So the finish products of whole offset printing would be carton, coated paper, newspaper, magazine, and so on.
Technical data
| Model | ECOO-BL-E |
| Construction | 3 ply |
| Thickness | 1.97/1.70±0.02nm |
| Color | Blue |
| Compressible | Microspheres |
| Surface | Micro-ground and polished |
| Roughness | 0.9-1.1μm |
| Hardness | 76-80 |
| Elongation | ≤1.2% |
| Tensile strength | ≥80 |
| Application | Strong universality Prefer to package print Speed about 9000 prints/hour |
| Characteristic | Moderate compressible avoids moving image of machine and reduces the edge marking. Wide-ranging print. Prefer to carton print and full mold print |
Model: ECOO-BL-E
Construction: 3 plys
Thickness: 1.97/1.70±0.02nm
Color: color
Compressible: Microspheres
Surface: Micro-ground and polished
Roughness: 0.9-1.1μm
Hardness: 76-80
Elongation: ≤1.2%
Tensile Strength: ≥80
Application: Strong universality, Prefer to package print
Speed capability: 9000 round/hour
Characteristic: Moderate compressible avoids moving image of machine and reduces the edge marking: Wide-range print. Prefer to carton print and full mold print

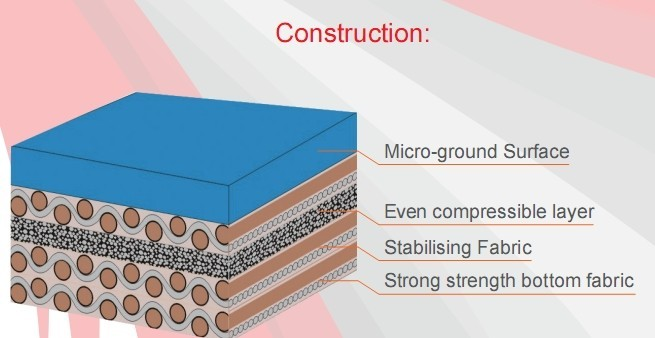

Structure and surface
A: a base non-woven fabric or a spun bonded non-woven fabric layer which is assigned to the printing cylinder,
B: a soft, highly resilient void-free compressible intermediate rubber layer which has closed gas pores
C: an outer-lying void-free layer of an elastomeric layer which faces toward the printing material.
Other supporting consumables for your reference
Blanket wash ;Roller wash ; Rolls in any dimension
FAQ
Q1: Do you offer free sample? How long is the sample time of the shipping? Does the sample fee can be returned?
Since blanket is high value, we did not offer free sample. But we can offer favorable discount. It will take 5 days to prepare sample. If you place formal bulk order, we will refund the sample fee and courier cost.
Q2: About the sample what is the cost of transportation?
The freight depends on weight, packing size and your country or province region,etc.
Q3: How long can I expect to get the sample?
The sample will be ready for delivery in 3-5 days and will be sent via international express such as DHL, UPS, TNT, FEDEX and would be arrived within 3-5days.
Q4: How about bar, can you supply blankets with bar to fit for different press machines?
We can offer blanket with or without bar, depending on customers’inquiry. $5 will be surcharged for each pair of bars. Please let us know the machine model or bar size if you need blanket with bar.
Product Tags:
|
|

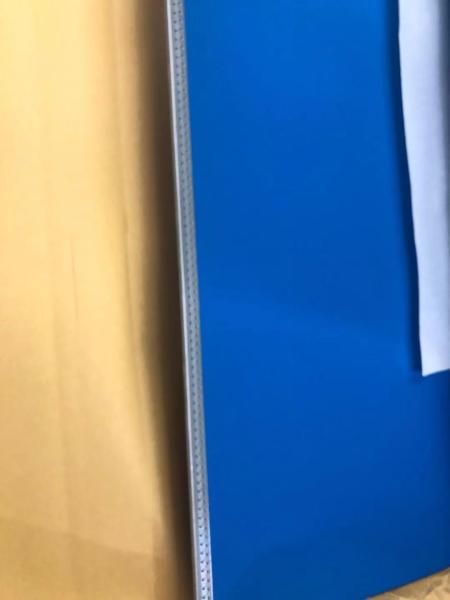

3 Ply Ink Transfer Rubber Offset Printing Blanket With Bar Images
|
