Ecoo T 1400c Shaftless Thermal Paper Slitter Rewinder
Multiple Knite thermal paper slitter rewinder, suitable for thermal paper, label and polymer film, wild format
Technical Configurations:
| Model Type | Ecoo-1400C |
| Max. Unwinding Width | 1400mm |
| Max. Unwinding Diameter | 1200mm |
| Max. Rewinding Diameter | 310mm |
| Min. Slitting Width | 25mm |
| Max. Machine Speed | 210 m/min |
| Main Power | 3.7Kw |
| Total Power | 6kw |
| Unwinding Shaft | Hydraulic Shaftless Unwinder to fix 3'' 6'' core |
| Rewinding Shaft | 0.5'', 1'' or as your request |
| Weight | 4000 kgs |
| Overall Dimension | 3100*2100*1900mm |
Related images
Application Material
All kinds of thermal paper, including fax paper, cash register paper, ATM paper, medical record paper, self-adhesive trademarks, films and so on.

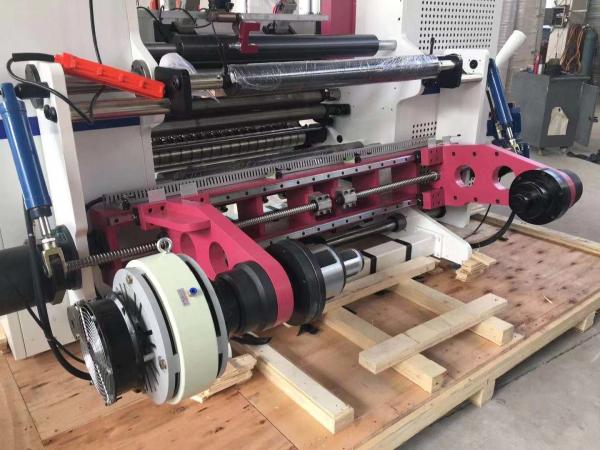

Unwinding Section
Hydraulic Shaftless Unwinder to fix 3'' 6'' core which is easier to loading material
Electromagnetic Brake from Taiwan
Fully automatic tension controller
One set of Photocell to tracking the precision
Slitting Section
Disc cutter
Cutter with adjustable and movable blade base.
Meter counter
Banana Roller which can avoid overlapping problem completely
Rewinding section
0.5",1" or as your request
Surface Rewinding technology, it adopts vertical method to press the rewinding roll
Electromagnetic Clutch from Taiwan
Surface Rewinding technology
Automatic cutting & gluing unit
Controlling Section
Siemens PLC & HMI from Germany
All the parameters are displayed on the monitor
Low voltage electrical appliances all from Schneider
Trimmed Waste
It adopts air blower to blow waste material off, the air blower power is 0.75kw.
Air blower pipe is more wear-resisting
Optional
Safety guard for the slitting device.
Emergency Switches on the 4 corners of machine.
Wrapping Line
Q&A
1. How long is the lead time?
The lead time is normally 30 days. We can accelerate for emergency cases.
2. How long is the warranty period?
Ecoographix guarantees 1 year of warranty for laser head and spare parts.
3. Is there any certification for your machine?
Yes, all our machines have been certified by SGS and CE.
4. Do you have accompanying consumption products to make an easy purchase for some end users?
Yes, we have qualified postpress machine at most favorable price. In addition,CTP machine, plate, blanket, ink, developer, processors are also in our business range.
5. What is your normal Payment term?
Normally, 30% deposit, 70% before shipping, or LC at sight.
6. What are your main products?
Generally, we manage two types of products: prepress equipment and consumables, post-press equipment and consumables. Our category is as below:
1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.

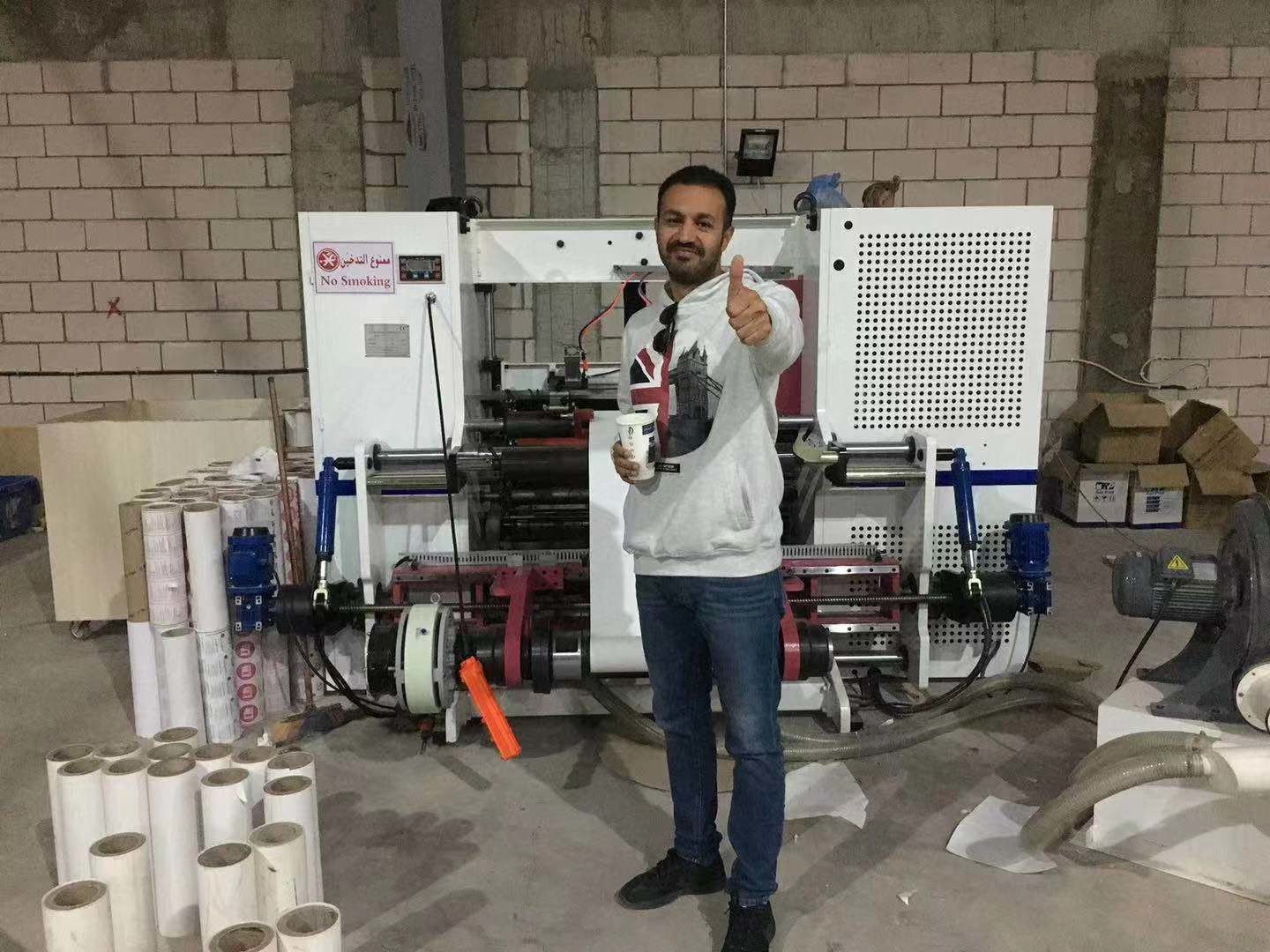

7. Can you offer some successful installation for reference?
Yes, we achieve great success in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa, etc, with the great assisstance of our dealers. If you have any concern about the quality or service, you can contact them by your own.
8. What about the Installation and after-sales technician support?
Our engineers are all can go to help the installation and provide the necessary training. The buyer should take the round air tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
