Economic offset printing Pigment ink
Features:
Environment friendly
Anti-skinning performance
Good water/ink balance
Rich in printing layer
Clear and complete in printing dots
Quick-drying performance, quick setting, quick turn
Techinicl data
| Type | ECOO-INK-D |
| Printing speed | Printing speed: 10000rph-13000rph |
| Packing | 1kg/2.5kg per tin, 12tins/6 tins per carton |
| Shelf Life | 3 years (from the production date); product against light and water |
| Appearance | Colored paste |
| ITEM/TYPE | TACK VALUE | FLUIDITY (mm) | PARTICLE SIZE (μm) | GLOSS | SETTING TIME (min) | DRYING TIME (hr) | SKINNING TIME (hr) |
| D
YELLOW | 8-9 | 39±1 | 12.5 | 85 | 4 | < 8-10 | >20 |
| D
MAGENTA | 8.5-9.5 | 40±1 | 12.5 | 75 | 4 | < 8-10 | >20 |
| D
CYAN | 8.5-9.5 | 39±1 | 12.5 | 75 | 4 | < 8-10 | >20 |
| D
BLACK | 9-10 | 38±1 | 12.5 | 80 | 4 | < 8-10 | >20 |
| Tack Value | The value is measured in 1 minute by inkometer at 32℃ and 400rpm. |
| Set Time | Printing adapter, 157g art paper, the volume of ink-coating can be up to 0.125cc. |
| Condition of test | Room temperature 25℃, humidity 65%-75% |
| ITEM/TYPE | Light Resistance | Heat Resistance | Acid Resistance | Alkaline Resistance | Alcohol Resistance | Soap Resistance |
| D
YELLOW | 3-4 | 5 | 5 | 4 | 4 | 4 |
| D
MAGENTA | 3-4 | 5 | 5 | 5 | 4 | 5 |
| D
CYAN | 6-7 | 5 | 5 | 5 | 5 | 5 |
| D
BLACK | 6-7 | 5 | 5 | 5 | 5 | 5 |
| Light Fastness | 1-8 (weak-strong) |
| Others | 1-5 (weak-strong) |

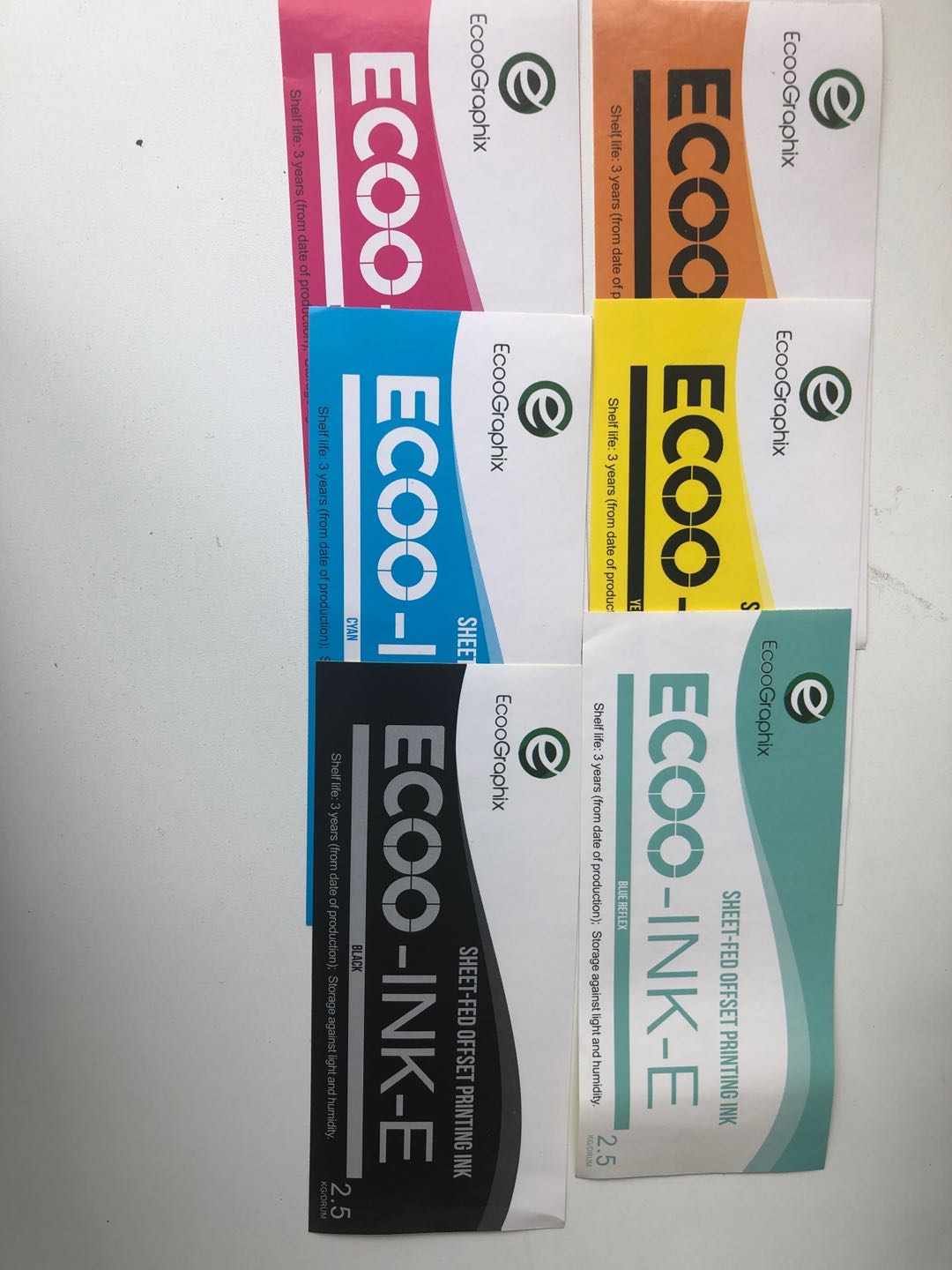

Package of our ink
The normal package is in aluminum can per 1 kg or 2.5 kg, vacuumed to secure tightly sealing and safe transportation. 6 drums or 12 drums packed in a carton which has partition board to protect and fix each drum from collision. It is standard package with enough protective layers and reasonable design.
Certifications
EcooGraphix series Printing Inks have passed the China environmental label product certification (ten central certification), ISO9001 quality management system, ISO14001 environmental protection system certification, ROHS certification and REACH certification, American ASTM, CPSIA and other related safety testing and certification, and the SONY SGS certification.
How to storage offset printing ink?
The ideal process and storage temperature for offset inks is between 18℃-25℃. If the offset inks are too high in viscosity due to storing at low temperatures problems may occur by insufficient flow in the duct and picking at sensitive stocks. If the inks will be processed in higher temperatures, so because of low viscosity misting, ink/water problems or high sot gain may occur.
The ink cans have to be stored vertically standing under exclusion of daylight.
