Compressible Rubber Blanket for Offset Printing Machine
Press rubber blanket
Printing material rubber blanket
Printing consumed blanket
| Model | ECOO-BL-M |
| Construction | 3 ply fabric |
| Thickness | 1.97/1.70±0.02mm |
| Color | Blue/Green |
| Compressible | Microspheres |
| Surface | Micro-ground and polished |
| Roughness | 0.9-1.1μm |
| Hardness | 76-80 |
| Elongation | ≤1.2% |
| Tensile strength | ≥80 |
| Suitable Printing Segment | Publishing, Packaging, Plastic, and Metal Printing |
| Application | Strong universality Appropriate to dot and word printing Speed about 10000 prints/hour |
Technical data
Model: ECOO-BL-M
Construction: 3 plys
Thickness: 1.97/1.70±0.02nm
Color: Blue/green/red
Compressible: Microspheres
Surface: Micro-ground and polished
Roughness: 0.9-1.1μm
Hardness: 76-80
Elongation: ≤1.2%
Tensile Strength: ≥80
Suitable Printing Segment: Publishing, Packaging, Plastic, and Metal Printing
Application: Strong universality, Prefer to package print
Speed capability: 10000 round/hour
Characteristic: Moderate compressible avoids moving image of machine and reduces the edge marking: Wide-range print. Prefer to carton print and full mold print

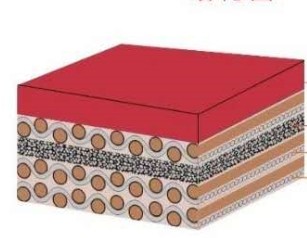

Structure
The printing blanket normally includes 3 layers as below:
- a base non-woven fabric or a spun bonded non-woven fabric layer which is assigned to the printing cylinder,
- a soft, highly resilient void-free compressible intermediate rubber layer which has closed gas pores
- an outer-lying void-free layer of an elastomeric layer which faces toward the printing material.
About bar
We can offer blanket with or without bar, depending on customers’inquiry. $5 will be surcharged for each pair of bars. Please let us know the machine model or bar size if you need blanket with bar.
