Cardboard Automatic Foil Stamping Die Cutting Machine 2500s/H

Name: Cardboard Automatic Foil Stamping Die Cutting Machine 2500sH
Brand: Ecoographix
Price: 1 USD

Cardboard Automatic Foil Stamping Die Cutting Machine 2500s/H Manufactures

Brand Name : Ecoographix

Model Number : TDS 750 L

Certification : ISO9000, ISO20001, CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 600 SET PER YEAR

Delivery Time : 65 DAYS

Packaging Details : Wooden case

Max cutting format : 700mm*500mm

Max. stamping format : 700mm*500mm

Max speed : 2500 sheet per hour

Min sheet size : 280mm*220mm

Max sheet size : 750mm*560mm

Machine dimension : 2600x1720x1975

Contact Now

Brief introcution

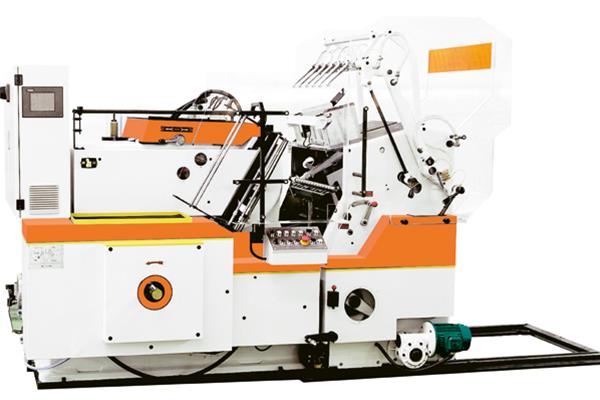

TDS750L cardboard die cutting machine is designed for the hot stamping, die cutting, pressing convex and creasing etc techniques, it is suitable for paper, cardboard, plastic file and so on. It can finish feeding, die cutting separating collecting work cycle automatically.

Most of factory owners rather choose cardboard die cutting machine. They were attracted by economical, smart, easy to change plates and other features of this model. We will support installation and training for new customer for free (labor cost).

Technical data

Model	ECOO TDS 750L
Max. Sheet Size(mm)	750x560
Min. Sheet Size(mm)	280x220
Max. die cutting size(mm)	700x500
Max. stamping size(mm)	700x500
Height of cutting rules(mm)	23.8
Max. pressure(N)	110x10⁴
Stock range	Min. Sheet 90g/m²; Cardboard 157-2000g/m²; E, B flute
Max. machine speed(s/h)	2500
Max. stamping speed(s/h)	2500
The thickness of stamping plate(mm)	3.5
Foil advancing shafts	2
Feeding pile height(mm)	800
Delivery pile height(mm)	160
Electric heating system	4 zones
Min. foil width(mm)	15
Foil reel core(mm)	25(1”) 76(3”)
Rated power(kw)	40
Air supply	0.8-1.0 MPa, ≥ 0.6mᶟ/min
Overall dimension(mm)	2600x1720x1975

Cardboard Automatic Foil Stamping Die Cutting Machine 2500s/H
