Digital Foil Stamping And Varnishing Label Enhancement Machine

Name: Digital Foil Stamping And Varnishing Label Enhancement Machine
Brand: EcooGraphix
Price: 1 USD

Digital Foil Stamping And Varnishing Label Enhancement Machine Manufactures

Brand Name : EcooGraphix

Model Number : Digispark

Certification : CE, ISO900

Place of Origin : CHINA

MOQ : 1SET

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500SET/YEAR

Delivery Time : 20-30 days

Packaging Details : Standard Exporting Wooden Box

Product name : Foil Stamping and Varnishing Label Enhancement Machine

Usage : Paper Printer, Label Printer

Printing Speed : 6m/Min - 30m/Min Depend on Polymer Layer Thickness

Substrate : Offset print, digital print, flexible material, lamination & other coated material

Printed Image Size : 280mm (Extendable to 320 mm)

Polymer Layer Thickness : From 10 up to 180 Microns

Ink Curing : Inter UV-LED Pre-Curing/Full Curing by UV-LED

Substrates Thickness : 30-400 Micro

Press with Foil Station Dimensions (Lxhx : 3500mmx1900mmx1800mm

Specification : 3,500 x 1,900 x 1,800 mm

Contact Now

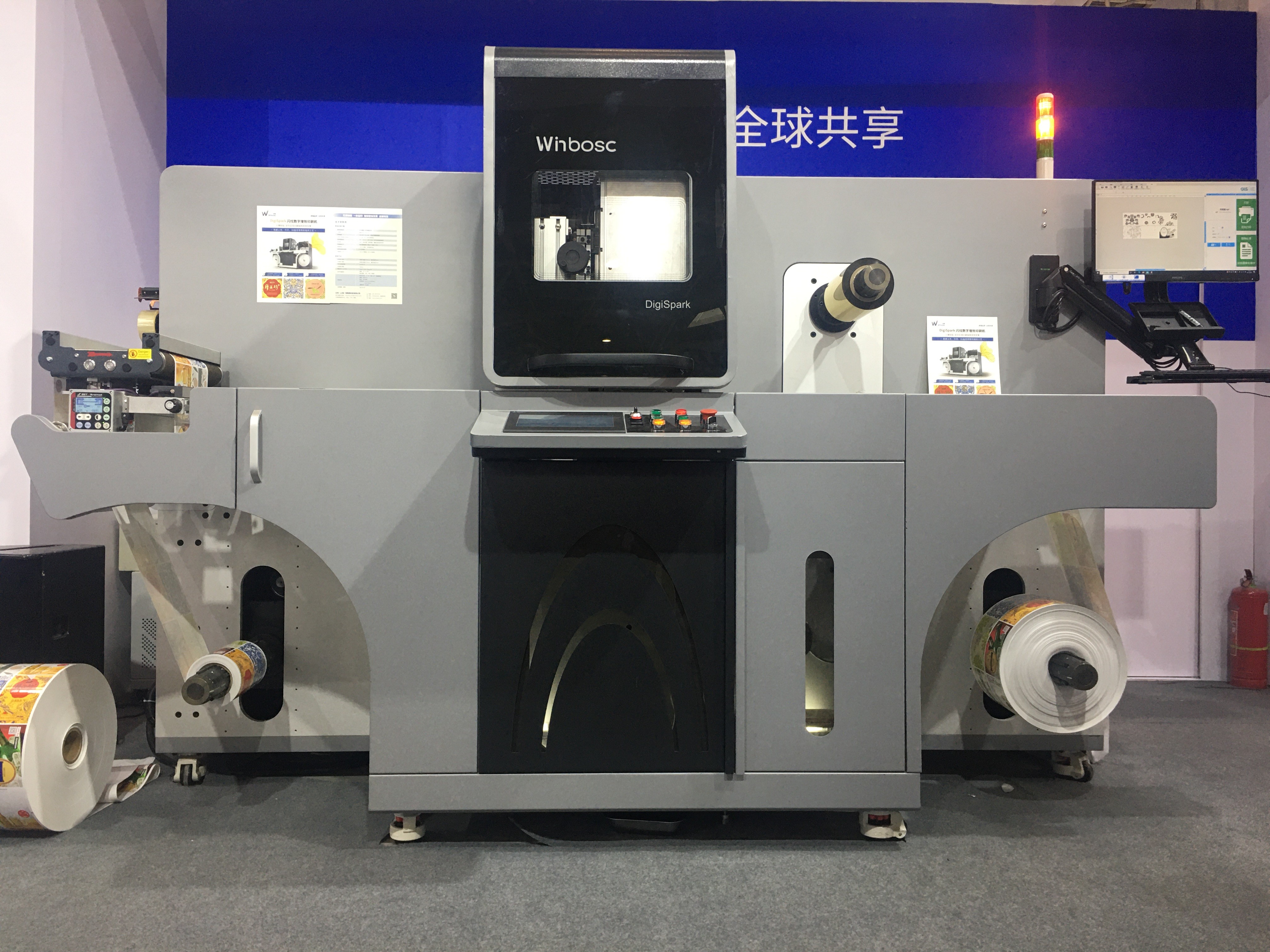

Digital Foil Stamping And Varnishing Label Enhancement Machine

Introduction:

EcooGraphix's newly developed DigiSpark digital printing machine realizes digital synergistic processes such as
digital varnish, 3D crystal bright, partial glazing, cold stamping, embossing, etc., without the need for plate making.
It can reduce costs and instantly realize unique visual effects of printing. This is a digital post-press equipment
that creates new profit points for users, and is a digital efficiency-enhancing printing machine.

Feature:

-Sturdy structure (double wall panel design) -Thick and thin materials, stability, mature platform
-High stability -Good material applicability -No heating required -LED UV+water cooling roller
-Suitable for ordinary cold foil -High quality-details, sharp edges: Less heat, higher stability
-Patented technology -Better detail performance
-Multi-process completed at one time -Customizable

Specification

Model	Digispark
Printing Technology	UV Piezo DoD-inkjet
Resolution	up to 1080*360 dpi
Printing speed	6m/min - 30m/min(depend on polymer layer thickness)
Variable Image system	PDF, optimized PDF, Optional barcode system
Supported image standards	PDF,PDF/VT,TIFF, JPEG, BMP & other data base files
Substrates	Offset, Digital, Plastics, Laminated and coated substrates
Printing image width	280mm (extendable to 320 mm)
Polymer	WB-DS-Clear Polymer
Polymer layer thickness	From 10 up to 180 microns
Ink curing	Inter UV-LED Pre-curing/Full curing by UV-LED
Unwinder diameter	Max. 700mm, Core 76mm
Rewinder diameter	Max. 700mm, Core 76mm
Substrates thickness	30-400 micro
Substrates width	330mm
Press with Foil station dimensions (LxHxW)	3500mmx1900mmx1800mm
Operating environment	Temperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity
Electrical requirements	Voltage: 3x380, ±5% 3 phases +G+N Frequency: 50/60 Hz Current: Avg. 25 Amps in Production
weight	2800kg

Cold Stamping Process

Digital Foil Stamping And Varnishing Label Enhancement Machine

DigiSpark Strenth

Producing And Packaging

Digital Foil Stamping And Varnishing Label Enhancement Machine

FAQ

1. What are the postpress effects achieved by this machine?
Cold foil stamping, varnishing, 3D shining and embossing.

2. can this model do color printing?
No. it you need a hybrid label printing machine which can do both printing and postpress printing, you can consider our other models. Please consult our sales.

3. How about the lead time and payment term?
We need 45 days to produce this machine. Normally our payment term is 30% deposit and 60% balance before shipment and 10% after installation.

4. How about the installation and operation training?
Our senior will fly to your location to do installation and training. It takes about 2 weeks. The service is free of charge but we will need the buyer to take the round trip freight and local hotel and meal cost.

5. Can you visit your factory?
Yes, our sales center based in Hangzhou and our factory based in shanghai. You are warmly welcome to visit us.

6. Can you do the sample as we required?
Yes, we can sample your artwork on your specified printing substrate and then courier to you. and also shoted the printing procedure for your reference.

7. Is the machine printing white?
No. This is not a color printing machine. It is more like a varnish-jet postpress machine.

8. is the machine all digital? what are the other similar machines in the markets?
Yes, all postpress procedures are digital, without any blanket or flexo plate. Just similar to Domino, HP, Epson and screen related products. But much more affordable.

Digital Foil Stamping And Varnishing Label Enhancement Machine Images
