Automatic Self Adhesive Thermal Paper Label Flexo Printing Machines 60m/min

Name: Automatic Self Adhesive Thermal Paper Label Flexo Printing Machines 60mmin
Brand: EcooGraphix
Price: 1 USD

Automatic Self Adhesive Thermal Paper Label Flexo Printing Machines 60m/min Manufactures

Brand Name : EcooGraphix

Model Number : Ecoo ZBS-320

Certification : ISO9000, CE

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 Sets/Year

Delivery Time : 30 Days

Packaging Details : Standard Export Packing

Machine Type : Label Printing Machine

Printing Speed : 60m/min

Precision of Chromatography : ±0.1mm

Printing Length : 177.8-355.6mm

Max. Printing Width : 310mm

Max. Unwinding Diameter : 600mm

Printing Colour : 1-6 Colors

Contact Now

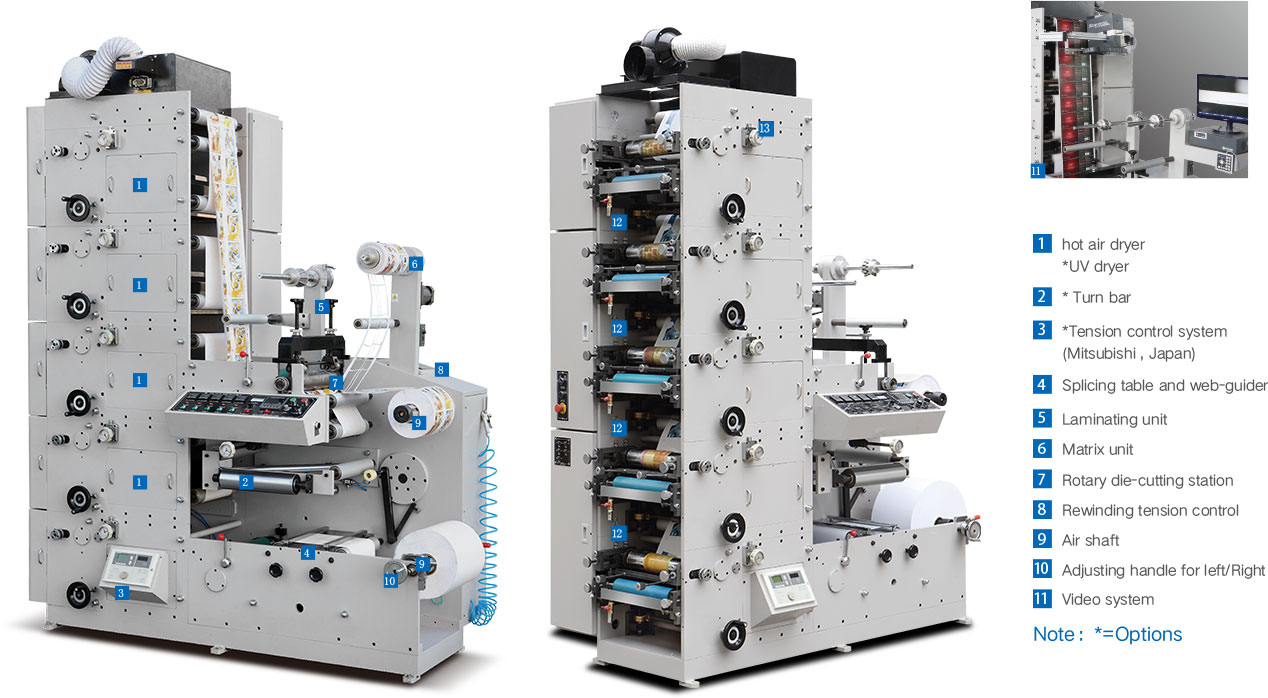

Automatic Flexographic Label Printer With One Die-cutting Station

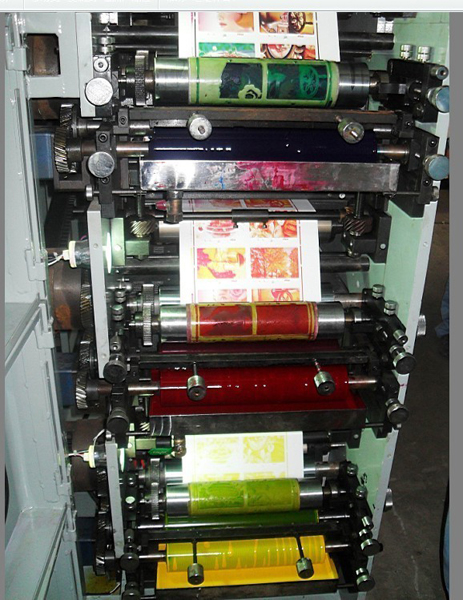

Features

1. Adopt the ceramic anilox cylinder to transfer the ink.

2. Unwinding and rewinding are controlled by magnetic powder brake/clutch.

3. Each printing unit adopts 360°plate adjustment.

4. Each printing unit equips with hot air dryer.

5. This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.

6. The ink rollers will be separated from the printing rollers, and keep running when the machine stops.

7. Main motor use inverter to adjust stepless speed.

8. The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump. It is an ideal machine for printing adhesive label.

Specifications

Automatic Flexographic Label Printing Machine
Model	Ecoo-320
Printing speed	60 m/min
Printing color	1-6 colors
Max. web width	320mm
Max. printing width	310mm
Max. unwinding diameter	600mm
Max. rewinding diameter	600mm
Printing length	177.8-355.6mm
Precision of chromatography	±0.1mm
*Dimensions (LWH)*	2000x1100x2600mm
Machine weight	about 2150kgs

Main Configuration

MAIN CONFIGURATION
Description	Brand	Quantity	Origin
Printing roller		3 sets	China
Anilox roller	Auclean/Laser	1 set	China
Unwind tension controller	Mitsubishi	1 set	Japan
Rewind tension controller	ZXTEC	1 set	China
Main motor	Wannan	1 set	China
Transducer	Mitsubishi	2 sets	Japan
Magnetic power brake/cluth	Ningxia	3 sets	China
Electromagnetic valve	Airtac	2 set	Taiwan
Inverter	Schneider	1 set	Frence
AC Contactor	Schneider	2 pcs	France
Time relay	C-LIN	1 pc	China
Solid relay	Omron	6 pcs	Japan
Micro relay	Weidmiiller	2 pcs	Germany
Temperature Controller	Yuyao	6 pcs	China
Air switches	Siemens	8 pcs	Germany
Low pressure wiring	Schneider	All	France
All the bearing	NSK/CHINA		JAPAN/CHINA

Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

Automatic Self Adhesive Thermal Paper Label Flexo Printing Machines 60m/min

Certificates

Automatic Self Adhesive Thermal Paper Label Flexo Printing Machines 60m/min

FAQ

1. Payment term?
Down payment 30% of the total payment shall be made by T/T once order is confirmed and the balance shall be paid by T/T before delivery.

2. Installation and after service?
Conditional and prior to mutual agreement between the seller and the buyer.

3. Warranty?
12 months from the date of arrival at the port of destination. Damages caused by faulty operation do not fall under warranty wear and tears parts are not under warranty.

4. Package?
Seaworthy packaging (vacuum packed with aluminum foil in wooden cases).
