ECOO T-1400C Shaftless Thermal Paper Slitter Rewinder
Main Technical data
| Model Type | Ecoo-1400C |
| Max. Unwinding Width | 1400mm |
| Max. Unwinding Diameter | 1200mm |
| Max. Rewinding Diameter | 310mm |
| Min. Slitting Width | 25mm |
| Max. Machine Speed | 210 m/min |
| Main Power | 3.7Kw |
| Total Power | 6kw |
| Unwinding Shaft | Hydraulic Shaftless Unwinder to fix 3'' 6'' core |
| Rewinding Shaft | 0.5'', 1'' or as your request |
| Weight | 4000 kgs |
| Overall Dimension | 3100*2100*1900mm |
Application Material
All kinds of thermal paper, including fax paper, cash register paper, ATM paper, medical record paper, self-adhesive trademarks, films and so on.
Unwinding Section
Hydraulic Shaftless Unwinder to fix 3'' 6'' core which is easier to loading material
Electromagnetic Brake from Taiwan
Fully automatic tension controller
One set of Photocell to tracking the precision
Slitting Section
Disc cutter
Cutter with adjustable and movable blade base.
Meter counter
Banana Roller which can avoid overlapping problem completely.
Rewinding Section
0.5",1" or as your request
Surface Rewinding technology, it adopts vertical method to press the rewinding roll
Electromagnetic Clutch from Taiwan
Surface Rewinding technology
Automatic cutting & gluing unit
Controlling Section
Siemens PLC & HMI from Germany
All the parameters are displayed on the monitor
Low voltage electrical appliances all from Schneider
Trimmed Waste
It adopts air blower to blow waste material off, the air blower power is 0.75kw.
Air blower pipe is more wear-resisting.
Optional
Safety guard for the slitting device.
Emergency Switches on the 4 corners of machine.
Wrapping Line
Product Tags:
|
|

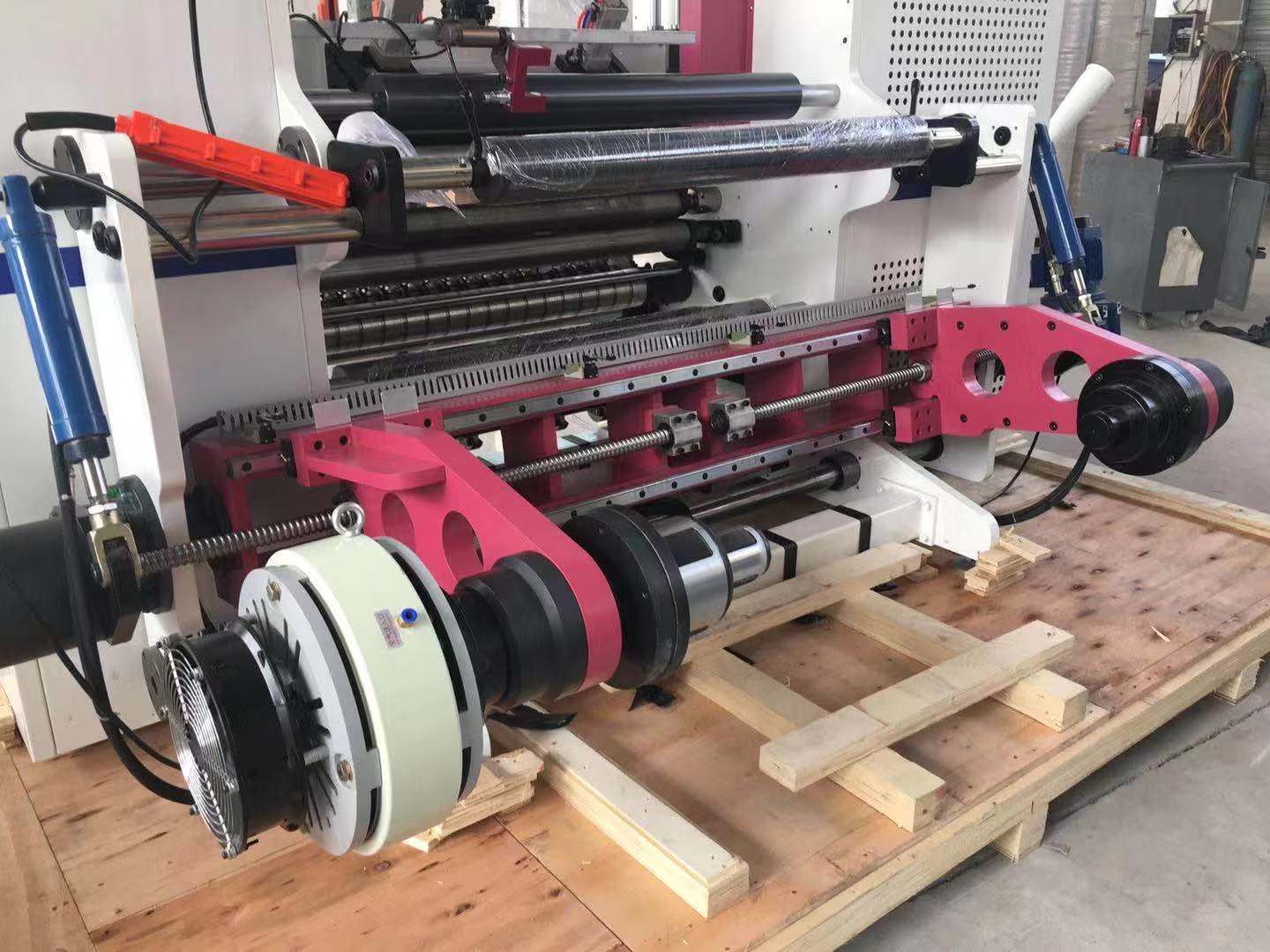

Hydraulic Shaftless Thermal Paper Slitter Rewinder Images
|
