Offset CTP Printing Plates UV / CTCP Convention Positive Plate 200Lpi

Brief Introducction

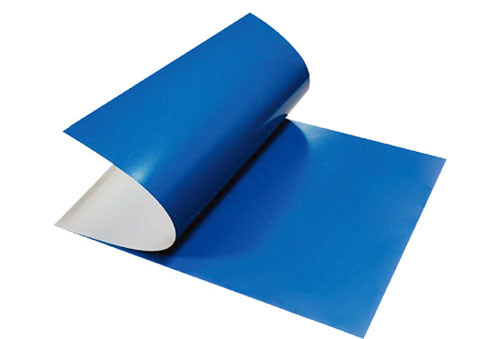

EcooGraphix CTCP Plate can be used for long runs high grade commercial and newspaper printing.
Unique production technology and high quality materials make the plate gain high photosensitive speed, good half-tone dot reproduction and stable performance.

Specification

General Information
Plate Model ECOO-CTCP-ES
Plate Type Positive CTCP Plate(Single Layer)
Application High quality commercial and newspaper printing
Substrate Electro chemically Grained and Anodized lithographic Aluminum
Aluminum alloy Standard 1050 Alloy
Gauge 0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width Maximum width 1280 mm
Length of Run Unbaked: 80,000 to 100,000 impressions Baked: Over 100,000 impressions

Exposing
Plate setters Luscher, Basysprint, Cron, EcooGraphix UV series CTCP machine
Exposure energy 50 - 70 mJ/m²
Spectral Sensitivity 400 - 430 nm - UV Laser
Resolution 2 - 99% LPI 200
Photosensitive Wave Length 405nm
Coating Light Blue

Developing

Processor All the kind brands.
Developer Any CTCP plate developer or our own developer
Processing temperature 23°C +/- 2°C
Developing time 25 - 30 sec
Processing Speed 0.80 - 1.20 m/min

Storage and handling
Safelight Handle under yellow safelight (UV free)
Shelf Life 12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling Stored in a cool and dry environment, away from excessive cold, heat and humidity.

Characteristic

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

More details

FAQ

Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
