VLF 2032mm Thermal Offset CTP Plate Machine / Thermal CTP Plate With 2400dpi

Name: VLF 2032mm Thermal Offset CTP Plate Machine Thermal CTP Plate With 2400dpi
Brand: EcooGraphix
Price: 1 USD

Brand Name : EcooGraphix

Model Number : ECOO T-2000

Certification : ISO9000, CE

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 Sets/Year

Delivery Time : 45 Days

Packaging Details : Standard Export Packing

Classification : CTP Plate Machine

Imaging System : 256-Channel, Discrete 830nm Laser

Output Speed : 10plates/Hour, 2032mm X 1400 mm/2400dpi

Plate Sizes : Max. 1400mm X2032mm; Min. 508mm X 394mm

Media Type : Thermal CTP Plate

Plate Thickness : 0.15mm to 0.30mm or 0.27mm to 0.40mm(Alternative)

Resolution : 2400dpi

Interface : USB 2.0 or USB3.0(USB2.0 Is Recommended)

Power Supply : Single Phase: 220V-240V, Power Consumption(peak value): 4kw

Contact Now

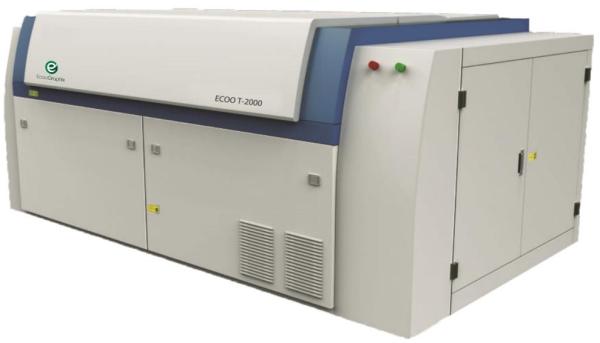

Very Large Format Thermal CTP Machine

Specifications

ECOO T-2000 CTP Specifications

Model
T-2000

Exposing Method
External Drum

Imaging System
256-channel, Discrete 830nm laser

Output Speed
10plates/hour 2032mm x 1400 mm / 2400dpi

Plate Sizes
Max. 1400mm x2032mm; Min. 508mm x 394mm

Media Type
Thermal CTP plate

Plate Thickness
0.15mm to 0.30mm or 0.27mm to 0.40mm(alternative)

Resolution
2400dpi

Repeatablity
±5μm(Continuous exposing for 4 times on the same plate with a temperature of 23ºC and humidity of 60%)

Interface
USB 2.0 or USB3.0(USB2.0 is recommended)

Net Weight
2800kg

Machine Size (WxLxH)mm
3170x1310x1310

Power Supply
Single Phase:220V-240V, Power Consumption(peak value):4KW

Environment
Recommended temprature:21-25ºC; Allowable temperature:18-26ºC, Humidity:<70%RH

ECOO T-2000 CTP Specifications
Model	T-2000
Exposing Method	External Drum
Imaging System	256-channel
Imaging System	Discrete 830nm laser
Output Speed	10plates/hour
Output Speed	2032mm x 1400 mm / 2400dpi
Plate Sizes	Max. 1400mm x2032mm; Min. 508mm x 394mm
Media Type	Thermal CTP plate
Plate Thickness	0.15mm to 0.30mm or 0.27mm to 0.40mm(alternative)
Resolution	2400dpi
Repeatablity	±5μm(Continuous exposing for 4 times on the same plate with a temperature of 23ºC and humidity of 60%)
Interface	USB 2.0 or USB3.0(USB2.0 is recommended)
Net Weight	2800kg
Machine Size (WxLxH)mm	3170x1310x1310
Power Supply	Single Phase:220V-240V, Power Consumption(peak value):4KW
Environment	Recommended temprature:21-25ºC; Allowable temperature:18-26ºC, Humidity:<70%RH

Producing And Packaging

VLF 2032mm Thermal Offset CTP Plate Machine / Thermal CTP Plate With 2400dpi

Certifications

VLF 2032mm Thermal Offset CTP Plate Machine / Thermal CTP Plate With 2400dpi

FAQ

1. What are your main products ?

Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers),positive CTCP plates(single and double layers) and Chemistry free CTP plate.

2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!

3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.

4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.

5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose.

6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
