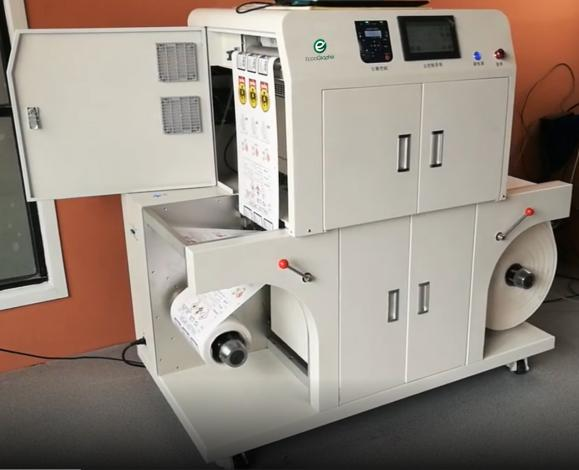

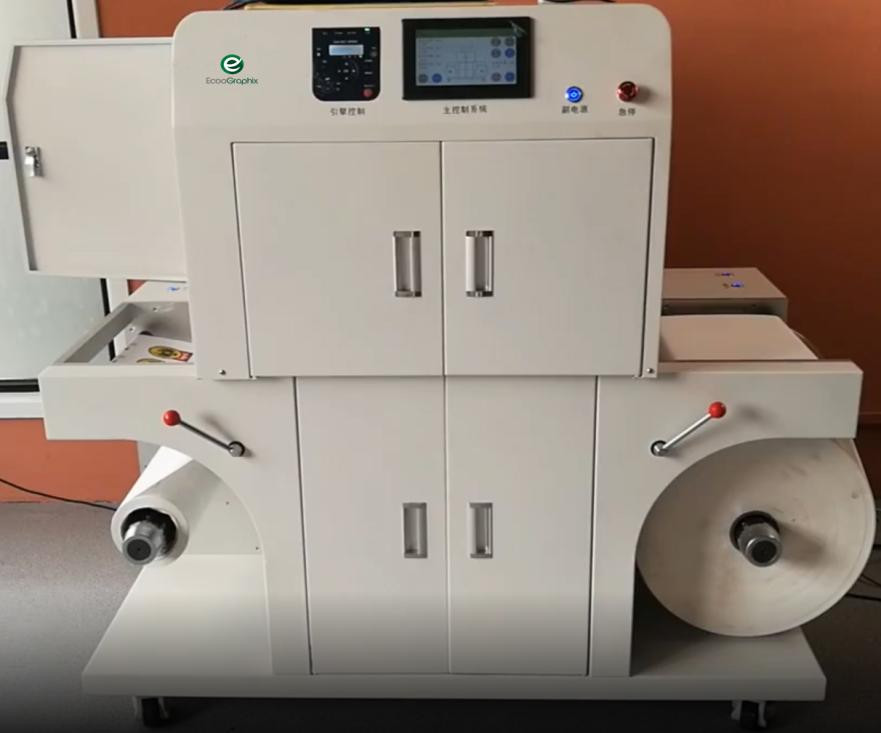

Model:Ecoo LL320 Laser Digital Label Printing
►Introduction
With the development of society and people's pursuit of product diversification, more and more products need to be labeled and customized. Label printing company and some enterprises need digital label printers to save printing costs and time costs. Lack of labor force, the operators who are professional for traditional printing machine are becoming less and less, The advantage of digital products are that easy to operate and maintain gradually enter the label printing market, it will replace the traditional printing press step by step. Ecoo Digital Label Printer meets the different needs of various customers with suitable printing costs and lower product prices.
►Software Features

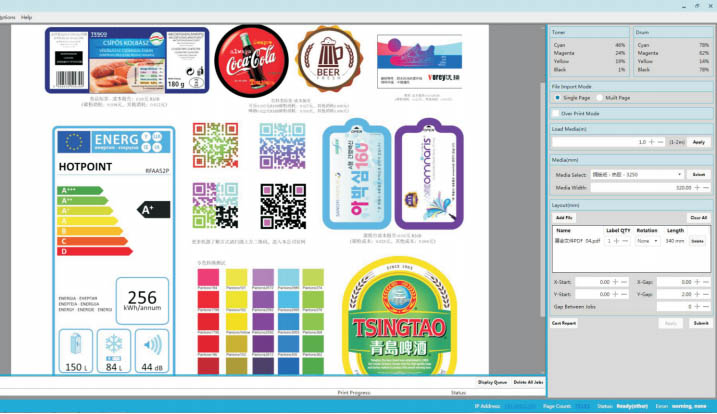

In order to get a high quality printing, Ecoo researched and developed typical and easy a printer software for LL320. This software has friendly interface, and easy to understand. Automatically edit jobs together, integrated with programmatic printing. Phaser Match 5 color management system was nested to printing software. You can get best image label and finish the jobs easily
►Auto web guide tension system
1 For tension adjustment of all media
2 Auto calculate the length of feeding
3 Ultrasonic detect edge of media to avoid media loading twisty
4 Avoid printing image to stretched and twisted
5 Increase the life spam of engine
►Packing details
Box dimension: 1700*1150*1570mm
Box weight Approx.: 520kgs
Box materials: Wooden
►Technical Data
| Digital Label Printing Machine |
| Model | Ecoo LL320 |
| Print speed | Up to 7.26 meters/min (30ft/min) |
| Print technology | 4 Color (CMYK) LED technology |
| Preparing time | 533MHz |
| Printer processor | less than 28s |
| Data port | (Standard)10BASE-T/100BASE-TX, USB2.0；(Options) internet 1000BASE-T, IEEE1284-B |
| Media width | 304mm |
| Print width | Min 210mm Max 308mm |
| Print length | Max 1200mm Min 98mm |
| Substrate types | Paper: Paper, High glossy paper,Matt paper； Film: PET, PP, PE, GHS. 60um-280um |
| All of media was tested in special environment, not tested media possible can't be used |
| Print quality | 1200x2400dpi |
| Toner supplies | CMY-18500sheets (A4, 5% coverage rate) K-26000 sheets (A4, 5% coverage rate)；( Rated according to ISO/IEC 19798 guidelines) |
| Drum supplies | CMYK-100000 (print runs according to the operating cycle, Medium size and the direction to change) |
| Size | 1400*810*1600mm |
| Weight | Print engine:423KGS |
| Operating environment | Temperature:20℃-23℃,Humidity: 45-55% RH |
| Power supply | 110-127 VAC,50-60Hz@2800W,220-240 VAC ,50-60Hz@2800W |
| Power consumption | (AC220-240V) sleep 75W；waiting 100W；running 1100W |
| Monthly running job | Max.20000 sqm (advice) |
| Warranty | 1 year (excluding high consumable parts) |
| Consumbales: Toner K: print 26 sheets A4 with 5% coverage Toner CMY: print 18.5K sheets A4 with 5% coverage Drum: 100K sheets A4 Waste box: 300k sheets A4 Transfer cleaner: 200k sheets A4 Transfer roller: 200k sheets A4 Developer CMYK: 480k sheets A4 Developer house: 480k sheets A4 Fuser: 480k sheets A4 Transfer belt Assy: 480k sheets A4 |
