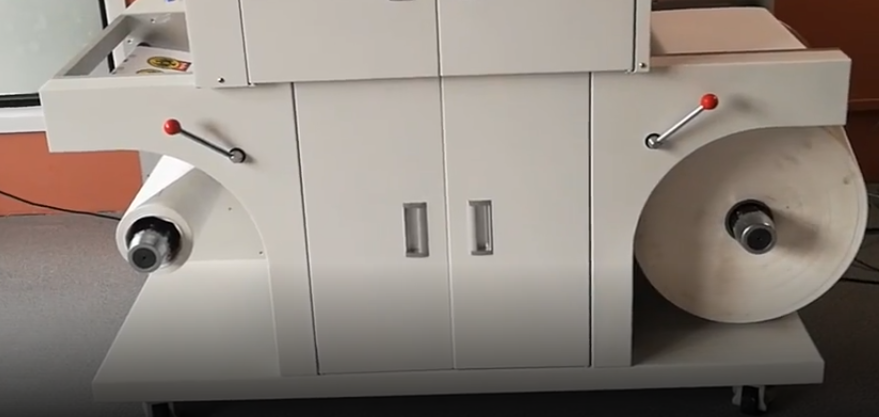

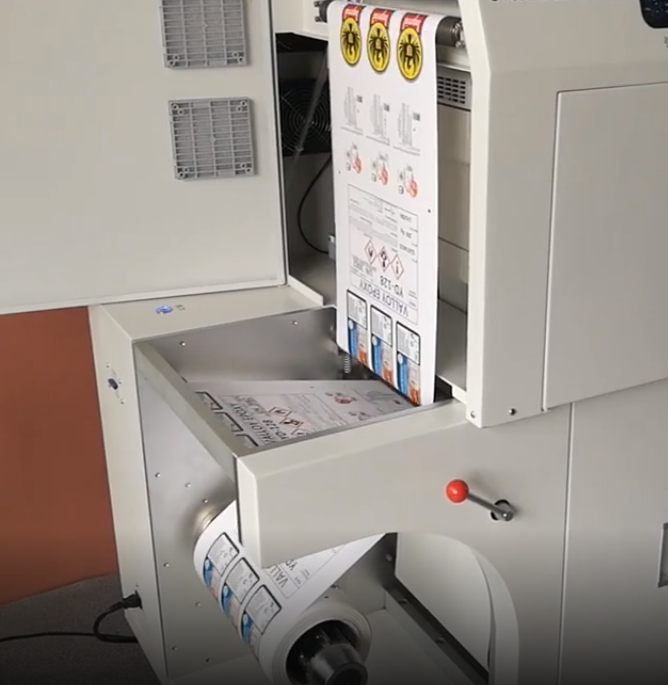

4 Color LED Technology Digital Label Printing Machine
With the development of society and people's pursuit of product diversification, more and more products need to be labeled and customized.
Label printing companies and some enterprises need digital label printers to save printing costs and time costs.
Digital Label Printer meets the different needs of various customers with suitable printing costs and lower product prices.
MODEL: Ecoo LL320

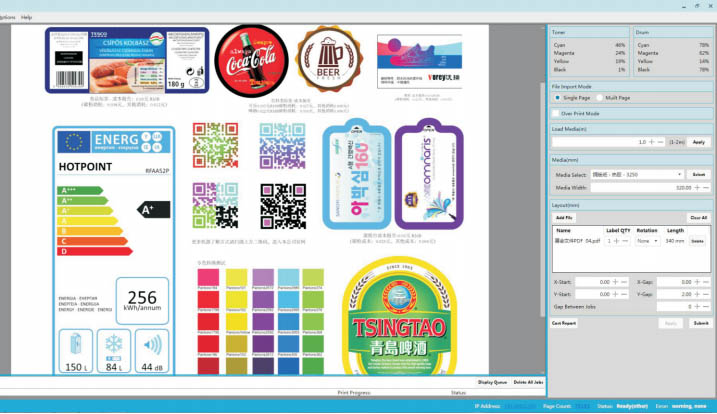

User-Friendly Printing Software for LL320
To ensure high-quality printing, we have developed specialized and user-friendly software for the LL320 printer. This software features an intuitive interface that simplifies operation and enhances productivity. Key features include:
1. User-Friendly Interface:
- Easy-to-understand design for efficient workflow management.
- Seamless integration with programmatic printing for automatic job editing.
2. PhaserMatch 5 Color Management System:
- Embedded within the software for superior color accuracy and image quality.
3. Versatile Media Management:
- Rotate, zoom, mirror, and nest your labels and jobs freely for optimal layout and design.
- Easily manage different media types and sizes.
4. Cost Calculation:
- Automatically calculate toner usage, label costs, and overall job costs for better budget management.
5. Advanced Printing Features:
- RIP-integrated color management for precise color reproduction.
- Second-track and cycling printing capabilities for multi-page jobs, enhancing efficiency and flexibility.
Note: The software must be connected to the machine to operate effectively.
| Digital Label Printing Machine |
| Model | Ecoo LL320 |
| Print speed | Up to 7.26 meters/min (30ft/min) |
| Print technology | 4 Color (CMYK) LED technology |
| Preparing time | Less than 28s |
| Printer processor | 533MHz |
| Data port | (Standard)10BASE-T/100BASE-TX, USB2.0; (Options) internet 1000BASE-T, IEEE1284-B |
| Media width | 320mm |
| Print width | Min 210mm, Max 308mm |
| Print length | Max 1200mm, Min 98mm |
| Substrate types | Paper: Paper, High glossy paper, Matt paper; Film: PET, PP, PE, GHS. |
| All of the media was tested in a special environment, not tested media possibly can't be used. |
| Print Quality | 1200x2400dpi |
| Toner supplies | CMY-18500sheets (A4, 5% coverage rate) K-26000 sheets (A4, 5%
coverage rate); (Rated according to ISO/IEC 19798 guidelines) |
| Drum supplies | CMYK-100000 (print runs according to the operating cycle, Medium size, and the direction to change) |
| Size | 1400*810*1600mm |
| Weight | Print engine: 423KGS |
| Operating environment | Temperature: 20ºC-23ºC, Humidity: 45-55% RH |
| Power supply | 110-127 VAC, 50-60Hz@2800W, 220-240 VAC, 50-60Hz@2800W |
| Power consumption | (AC220-240V) sleep 75W; waiting 100W; running 1100W |
| Monthly running job | Max. 20000sqm (advice) |
| Warranty | 1 year (excluding high consumable parts) |
Consumables:
Toner K: print 26 sheets A4 with 5% coverage
Toner CMY: print 18.5K sheets A4 with 5% coverage
Drum: 100K sheets A4
Waste box: 300k sheets A4
Transfer cleaner: 200k sheets A4
Transfer roller: 200k sheets A4
Developer CMYK: 480k sheets A4
Developer house: 480k sheets A4
Fuser: 480k sheets A4
Transfer belt Assy: 480k sheets A4 |
Features
Software Features
The Echo LL320 digital label printing machine overturns the digital label printing line. She has the best-advanced LED production printing engine. We have paid efforts integrated with many years of experience. We get high efficiency and low-cost printing machine. Most printing companies and print shops can have it and create wonderful wealth.
• LED low-temperature image technology
• CMYK 4 colors
• Printing resolution 1200*2400 dpi
• Print speed 7.26m per minute
• Print width 308mm

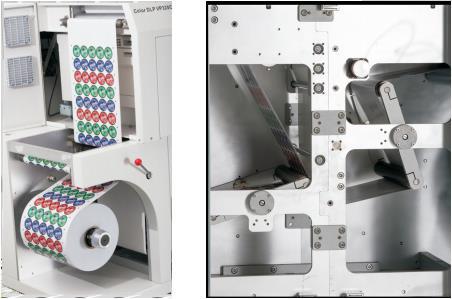

Auto web guide tension system
1. For tension adjustment of all media
2. Auto-calculate the length of feeding
3. Ultrasonic detect edge of media to avoid media loading twisty
4. Avoid printing images stretched and twisted
5. Increase the lifespan of the engine
From production to delivery, we make every detail very carefully to guarantee good product quality and service to customers.
Certificates
FAQ
1. What are the payment terms?
- A down payment of 30% of the total amount is required via T/T upon order confirmation.
- The remaining balance must be paid by T/T before delivery.
2. How are installation and after-service handled?
- Installation and after-service are conditional and subject to mutual agreement between the seller and the buyer.
3. What is the warranty coverage?
- The warranty period is 12 months from the date of arrival at the port of destination.
- Damages caused by faulty operation are not covered.
- Wear and tear parts are excluded from the warranty.
4. How is the product packaged?
- The product is seaworthy packaged, vacuum-packed with aluminum foil, and enclosed in wooden cases.
