Product Description:
Brief Introduction:

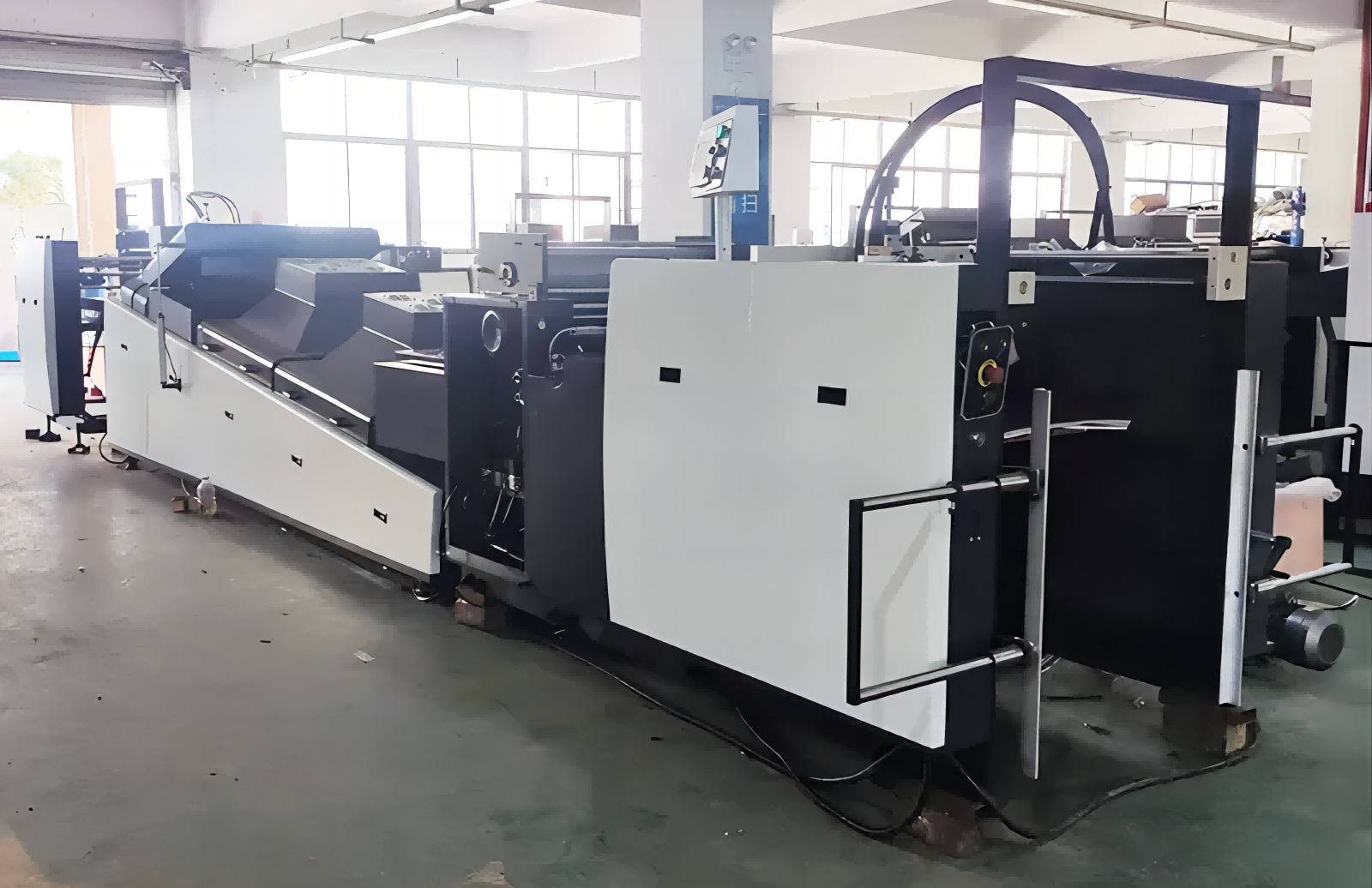

This equipment uses ceramic anilox roller for polishing, with uniform coating, long service life of the coating roller, bright and lustrous printing quality. Especially suitable for large and medium-sized printing plants, which can steadily reduce production costs and improve production efficiency for customer enterprises.
Features:
It can both local and overall coating, and has the advantages of high working speed, high gloss, thin and uniform coating layer. It is widely used in packaging decoration, book cover and other printing materials.
Application:
1. Spot coating, you can choose to coating one or more patterns on the surface of the paper. After coating, the pattern will be more three-dimensional and have better texture, which can make the pattern more prominent and eye-catching.
2. Full coating gives the paper a thin protective layer on all sides, making the product wear-resistant, stain-resistant, waterproof and dust-proof, allowing the product to be used longer.
Specification:
| Model | Ecoo coating-760 |
| Max.sheet size | 760x595mm |
| MIN.sheet size | 290X270mm |
| Sheet weight | 80-400gsm |
| Production speed | 6000 sheet/h |
| Power | 45kw |
| UV lamp | 3 pcs x 8 kw |
| IR lamp | 18 pcs x 1 kw |
| Paper feed heigh | 1050mm |
| Paper stack height | 920mm |
| Weight | 65000kg |
| Dimension | 9500x2050x2000mm |
The whole machine has a one-key acceleration function. After the main machine accelerates, the oven, paper delivery, feeder, and metering roller will all change according to the speed of the main machine.
1: Adopt high-speed offset press feeder to ensure fast and stable operation
2: Equipped with non-stop paper feeding device to ensure continuous production.
3: Use metering roller anilox roller to oil and then transfer to blanket.
4: The closed scraper is used to circulate the oil inside without outflow of oil, which can effectively reduce oil loss and volatilization.
5: Equipped with 18 IR lamps and 3 UV lamps, which are controlled separately.
6: Three roller design, tooth roller, plate roller, and anilox roller. Stable and durable, suitable for water-based, oily, blister oil, and uniform glazing effect.

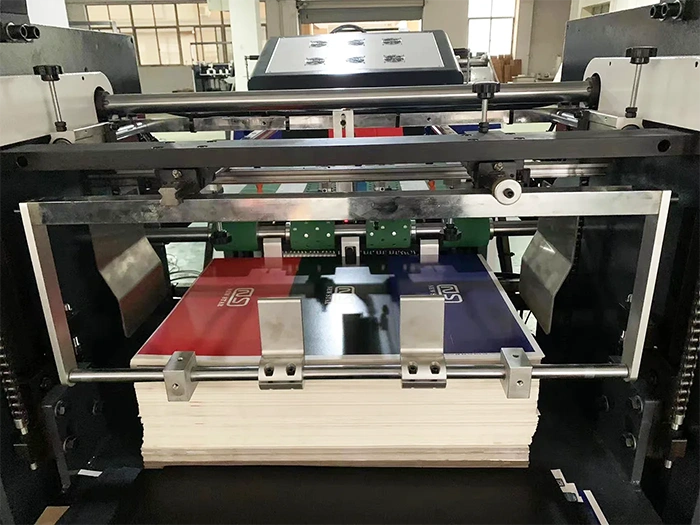

(1) Auto feeding:

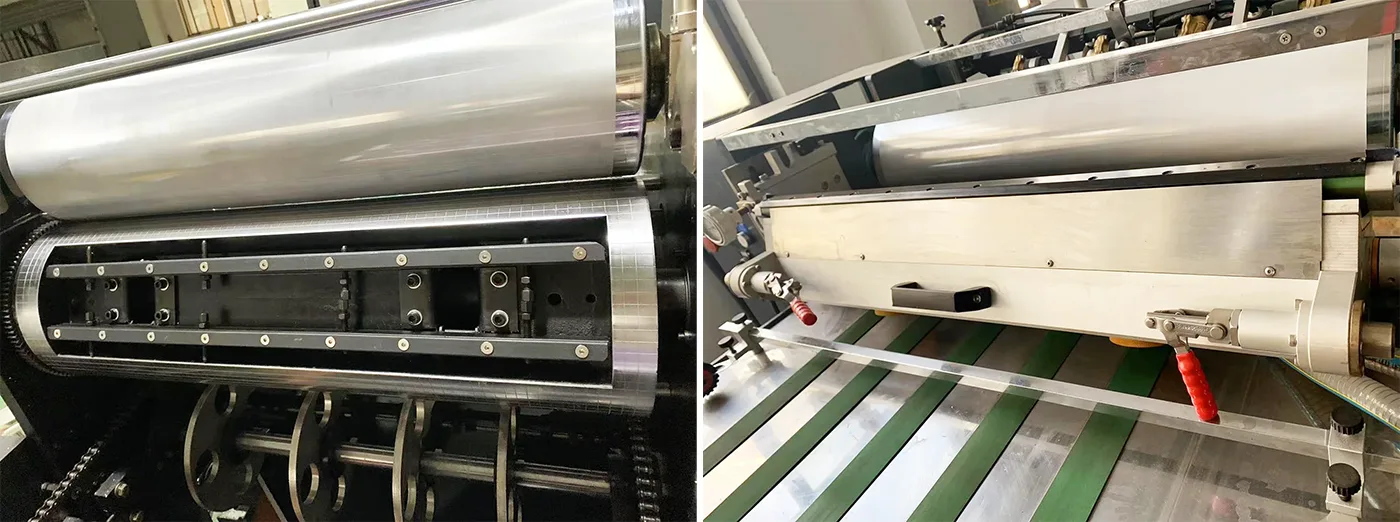

(2) Coating section (basic oil coating head):

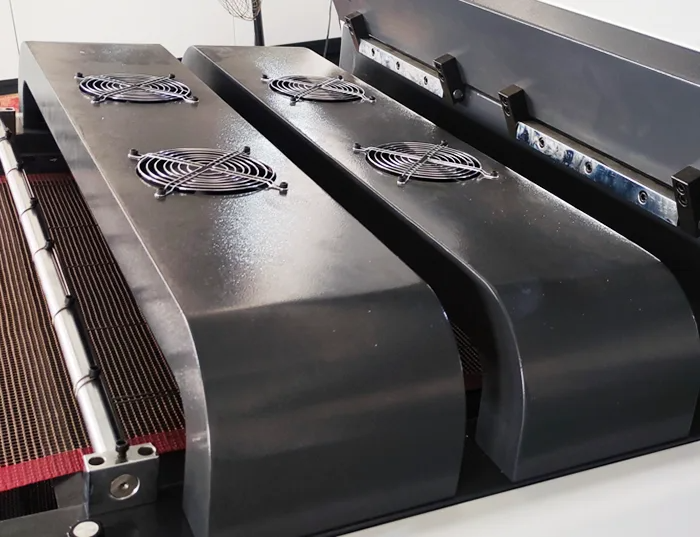

(3) IR Drying and UV Curing System:
(4) Cooling system:
(5) Automatic delivery system:
