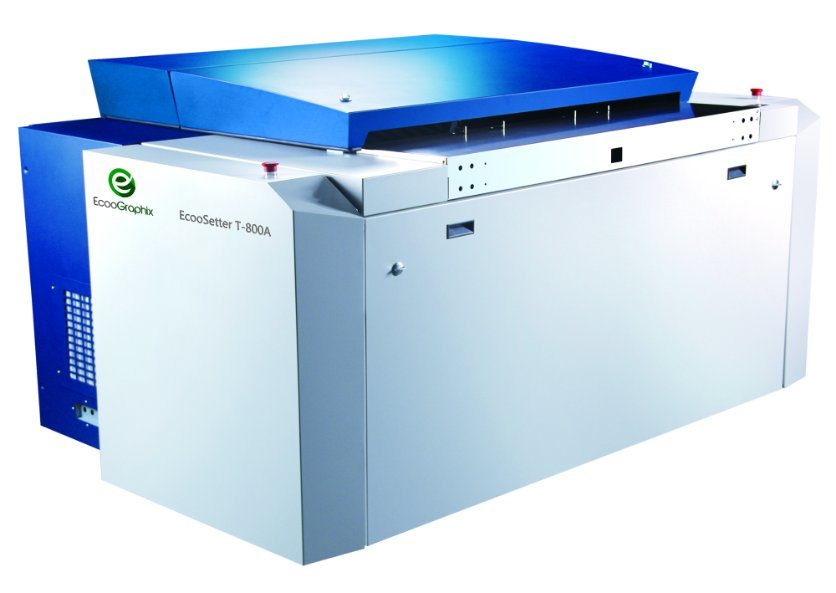

8up Automatic CTP Systems Offset Prepress Computer To Plate-Thermal CTP
Model: EcooSetter T-800SA
EcooSetter T-800A is for High Quality Imaging and Performance. It's an optimum system for maximum platemaking productivity and economy.
It's available in 8-page formats with your choice of laser channels and automation to deliver the right price and performance combination,
to meet your exact production and business needs.
Specification
| ECOO T-800A Series Thermal CTP Specifications |
| Model | T-800XA | T-800FA | T-800SA | T-800EA |
| Imaging System | 256 | 64 | 48 | 32 |
| Output Speed | 40 | 28 | 22 | 16 |
| 1030mm x 800mm / 2400dpi |
| Plate Size | Max.1163 x 940mm Min. 400mm x 300mm |
| Plate Thickness | 0.15mm to 0.30mm |
| Resolution | 2400dpi |
| Weight | 1200KG |
| Repeatability | ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%) |
| Machine Size (WxLxH)mm | 2127*1610*1058mm (W*D*H) |
| Power Supply | Single phase:220AC +6%, -10%, Power Consumption: 4KW |
| Environment | Recommended temprature: 21-25ºC Max: 15-30ºC Humidity: 40%-70% |
Model:
EcooSetter T-800SA
Laser wavelength:
830nm
Plate:
Thermal plate
Exposing Method:
External Drum
Imaging System:
48-channel
Throughput:
22 plates per hour, 1030mmx800mm 2400dpi
Plate Size:
Max. 1130mmx920mm min. 400x300mm
Plate Thickness:
0.15mm to 0.3mm
Resolutions:
2,400dpi
Repeatability:
±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface:
USB2.0
Weight:
1200KG
Size:
2127x1610x1058mm(W×D×H)
Power Supply:
single-phase: 220AC+6%,-10%;
Power Consumption:
4KW
Environment:
recommended: 21-25ºC,max.18-26ºC,humidity:40-70%

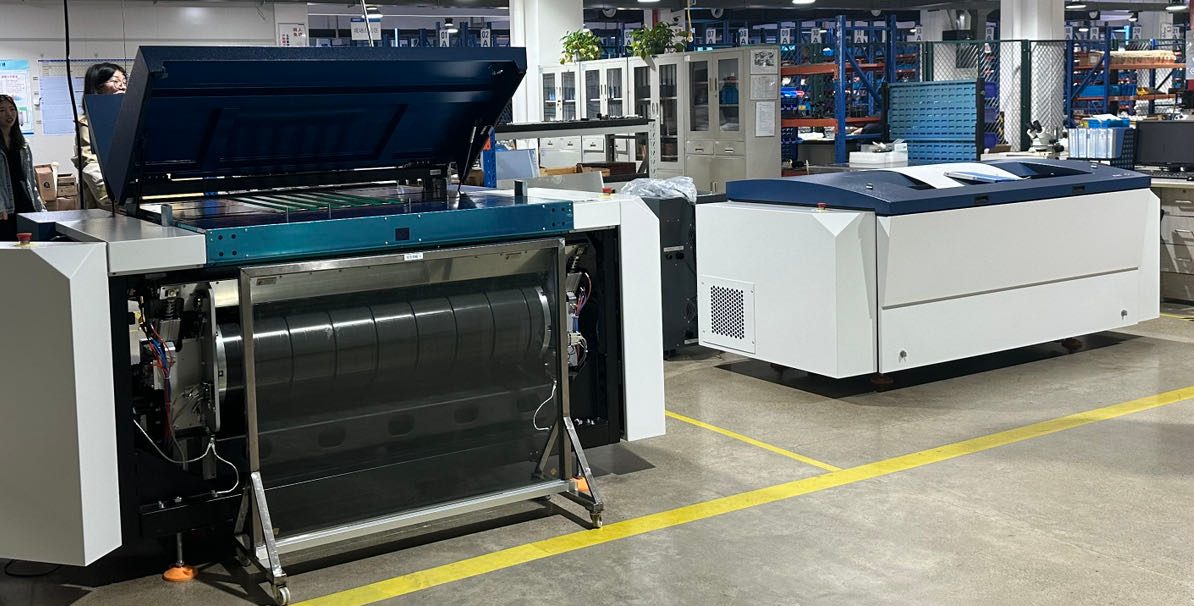

Producing And Packaging

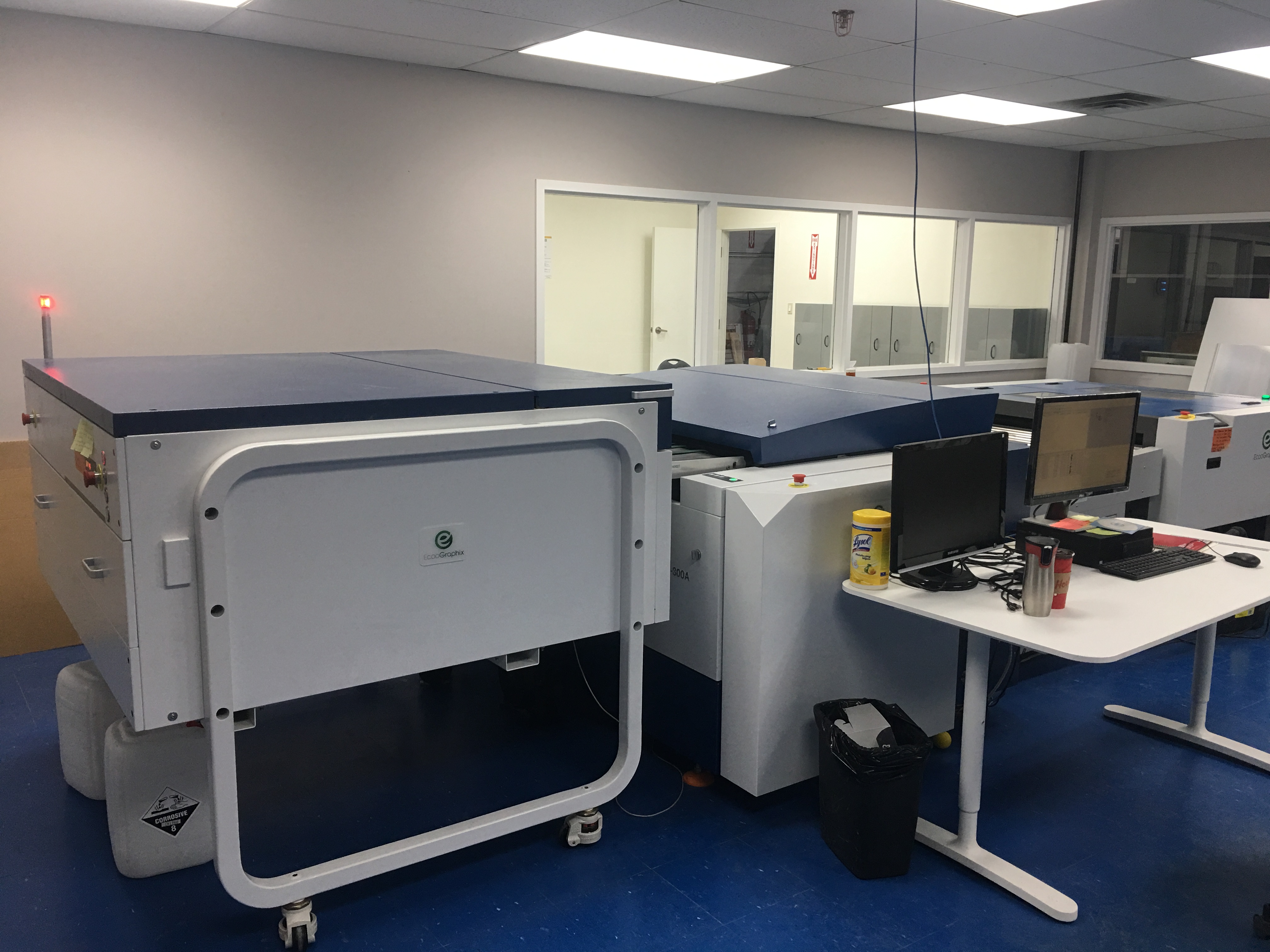

Installation Worldwide
FAQ
1. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
If machine user uses our plate at the same time, we offer lifelong warranty.
2. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
3. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
