• Specification •

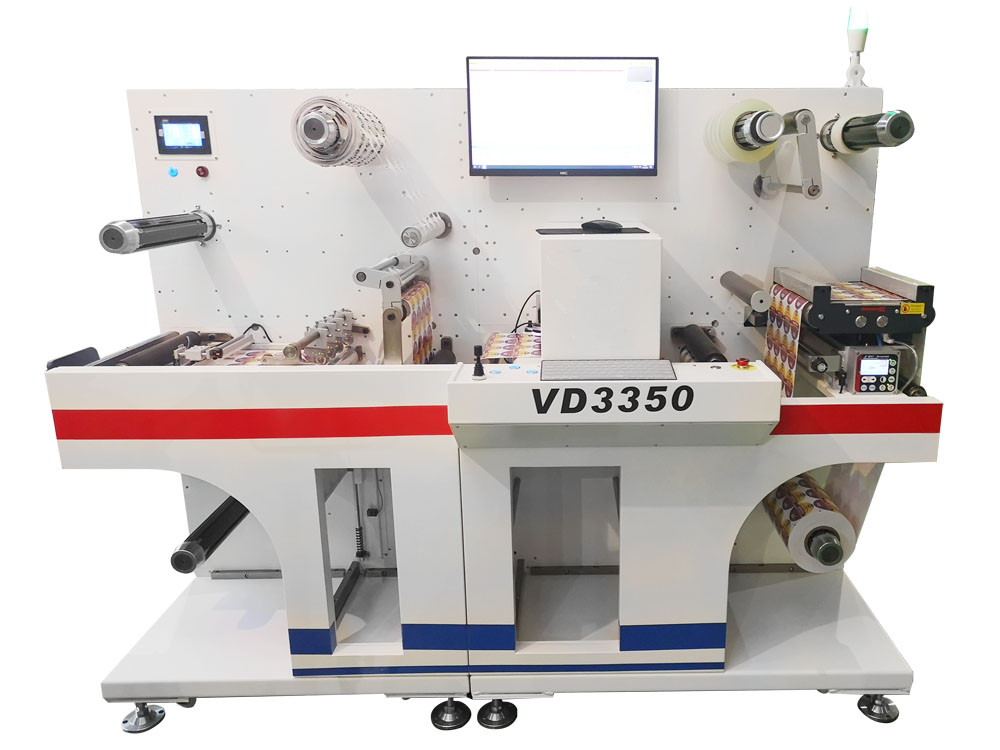

Model:
VD3350
Max. media roller:
Max. media roller
Cutting media width:
40-350mm
Max.label width:
330mm
Min.label length:
10mm
Max.label length:
600mm
Cutting speed:
Max.9m per minute (depend on label shape and size)
Cutting blades:
(standard) 4 pcs
Slitting blades:
(standard 4 pcs ) max.15pcs
Slitting speed:
Max. 100m per minute
Machine size (W*D*H):
2100*1195*1575CM
| Model | Ecoo-VD3350 |
| Max. media roller | Max. media roller |
| Cutting media width | 40-350mm |
| Max.label width | 330mm |
| Min.label length | 10mm |
| Max.label length | 600mm |
| Cutting speed | Max.9m per minute (depend on label shape and size) |
| Cutting blades | (standard) 4 pcs |
| Slitting blades | (standard 4 pcs ) max.15pcs |
| Cutting tracking | CCD camera |
| Die-cutting technology | with tungsten steel rotary blades |
| Cutting precision | 0.1mm (duplicate) |
| Slitting speed | Max. 100m per minute |
| Slitting width | 10-330mm |
| Slitting precision | 0.1mm |
| Machine size (W*D*H) | 2100*1195*1575CM |
| Machine weight | 1200kg |
| Power | 110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS |
| Warranty | 1year (besides high consumable parts) |
| Options | Cutting head/Slitting unit/Film back liner removal/Sheet paper cutter |
• Main Machine Parts •
1. High precision feeding system:
Utilize the ultrasonic web-guide system, it makes sure the feeding perfectly.
2. Cold laminating
It has cold laminating function, your label will be bright and perfect. The back liner removal is optional.

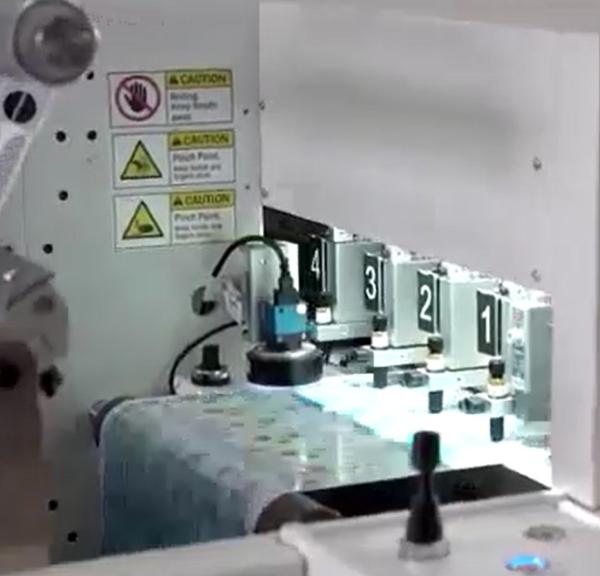

3. Digital die-cutting system
VD3350 Digital label die-cutter utilizes high precision screw transmission system.
Max soeed can be 9m per minute.
Individual control for the 4 heads, combining with the function of auto adjust the heads distance, to make the every single head on or off.
4. CCD identify system
With the CCD camera position and identify system, to recognize the sequence, to reach the function of changing file and cutting next graphics automatically.
5. Precision slitting system
Utilize rotary slitting mode, can install max.15 blades, high speed with 60m per minute, instead of traditional slitting equipment completely.
6. The waste removing system
The precision machinery design can control the roller rotating uniformly, avoid removing waste discontinuously due to unstable pressure, keep finishing labels clean.
7. Sheet Cutter
The optional built-in Pc350 Sheet Cutter, can be inline with the main Die-cutting, to perform the synchronous die-cutting and sheet cutting.
• Features •
1. Fast and high precision with full-servo motor
2. Fully automatic tension and feeding control
3. Intelligent position, choose file automatically
4. Standard 4 cutting heads distance can be adjusted automatically
5. Support 3 units cutting simultaneously
6. Intelligent cutting with trajectory optimization
• Producing And Packaging •
• Certificates •
• FAQ •
1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing.
We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.
2. What is your warranty?
One year for machine.
3. What is the Lead Time?
Usually 45days, and we will try our best to meet your demands.
4. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
