Description
The HIS series of spot UV glazing machines adopts the transmission structure and chain rail design of an offset printing press, and adopts a large-diameter embossing drum, so the finished oil film is flat and uniform. accurate and bright, and the thick and thin paper can be taken into account. It can do comprehensive UV glazing and overall UV glazing.
Technical data and configuration
| High Speed UV Spot and Overall Coating Machine |
| Model | Ecoo HIS-1100 | Ecoo HIS-1280 | Ecoo HIS-1450 |
| Max.sheet size | 1100x1100mm | 1100x1280mm | 1100x1450mm |
| MIN.sheet size | 310X406mm | 350X460mm | 350X460mm |
| Max.coating size | 1090x1090mm | 1090x1270mm | 1090x1440mm |
| Sheet thickness | 80-600gsm | 80-600gsm | 128-600gsm |
| Coating registration accuracy | ±0.2mm | ±0.2mm | ±0.2mm |
| Production speed | 6800sheets/hour | 6500sheets/hour | 6200sheets/hour |
| Weight | 8500kg | 9000kg | 9500kg |
| Dimension | 12010x2779x1818mm | 12230x2960x1844mm | 12230x3100x1844mm |
| Power | 50KW(E) 42KW(W) | 54KW(E) 44KW(W) | 57KW(E) 47KW(W) |
| Remark: Production speed depending on sheet weight, size and quality |

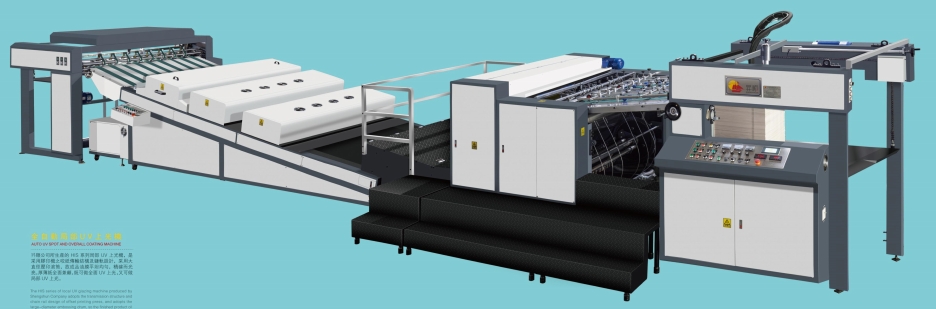

Main function and features

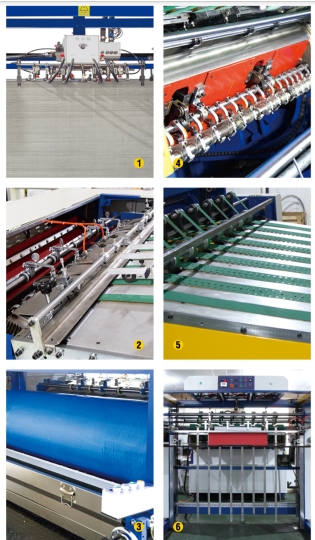

1 Feeder
Enlarged feeder with four sucking and six forwarding suckers and air blowing for spool can feed sheet easily and smoothly.
2 Front Side Lay Gauge
When sheet reaches front lay gauge, left and right pulling lay gauge can be used. The machine can stop feeding immediately by sensor without sheet and release pressure to keep bottom roller under no varnish condition.
3 Varnish Supply
Steel roller and rubber roller with metering roller reversing and doctor blade design control by varnish consumption and volume to meet the demand of products and operate easily. (Varnish consumption and volume are determined by LPI of ceramic anilox roller)
4 Transferring Unit
After sheet is transferred from pressure cylinder to gripper, air volume blowing for paper can support and reverse sheet smoothly, which can prevent sheet surface from being scratched.
5 Conveying Unit
Upper and lower conveying belt can form thin sheet to be curved for smoothly delivery.
6 Sheet Delivery
Automatic pneumatic patting sheet controlled by photoelectric detecting sensor make sheet pile fall automatically and collect sheet neatly. Electronic control can take out sheet sample safely and quickly for inspecting.

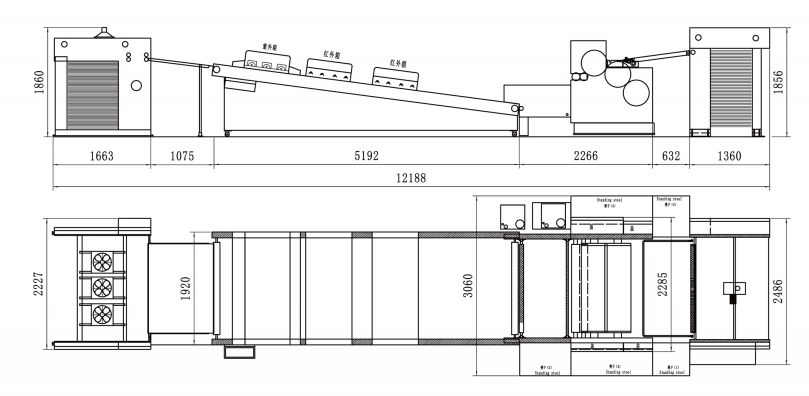

Floor map
Product Tags:
|
|
High Speed 1450 Mm Format UV Spot And Overall Coating Machine Full Automatic Images
|
