Prepress Equipment Offset Printing Plate Making Machine Ctcp UV CTP
Specification
EcooGraphix UV-CTP(CTCP Machine) UV-400S
Model:
EcooSetter UV-400S
Laser wavelength:
400-410nm
Plate:
UV plate, high-sensitive PS plate
Exposing Method:
External Drum
Imaging System:
32 channel
Throughput:
22 plates per hour, 800mmx660mm 2400dpi
Plate Size:
Max. 800mmx660mm min. 400x300mm
Plate Thickness:
0.15mm to 0.3mm
Resolutions:
2,400dpi
Repeatability:
±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface:
USB2.0
Weight:
800KG
Size:
1900×1200×1000mm(W×D×H)
Power Supply:single-phase:
220AC+6%,-10%;Power Consumption:4KW
Environment:recommended:
21-25ºC,max.18-26ºC,humidity:40-70%
Producing and Packing

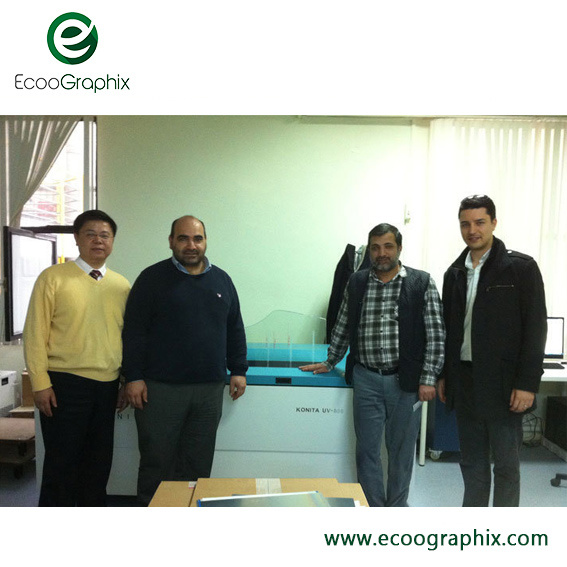

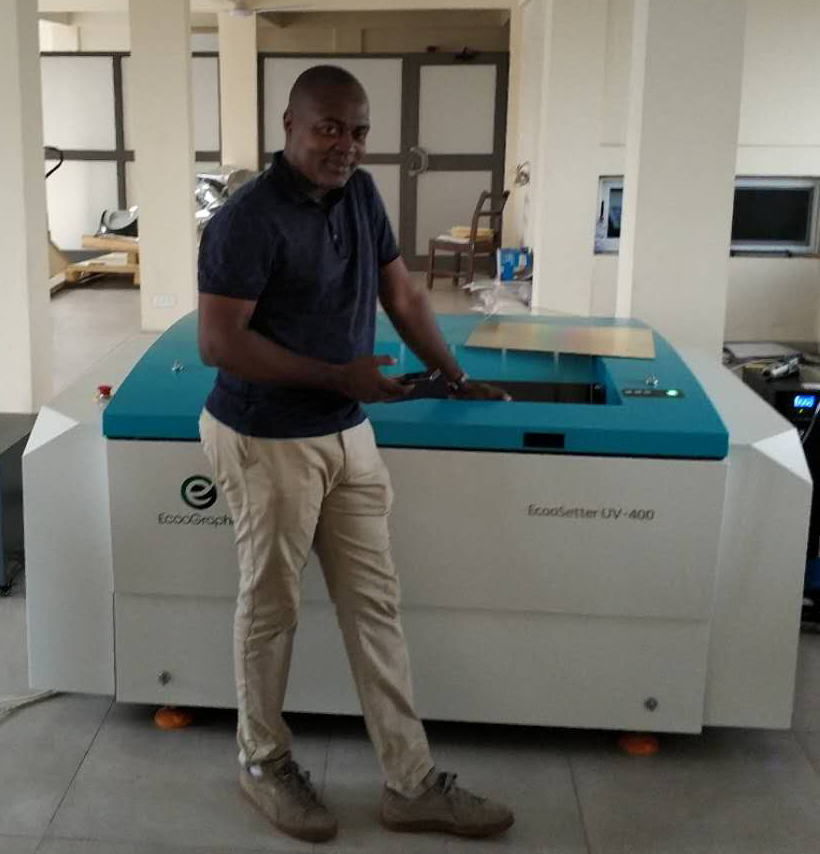

Installation Worldwide
About US
EcooGraphix is a leading global supplier and service provider for graphics arts equipment and printing supplies. It started in 2010 with developing and manufacturing CTP machines and printing plates. EcooSetter CTP machines and Ecoo plates have now become well-known brand names worldwide. There are over 500 printers worldwide currently running EcooGraphix ctp and plates on daily base. There are around 45 international distributors globally in partnership with EcooGraphix. EcooGraphix teams have over 25 years' experience specialized in prepress, printing, finishing equipment and consumables and digital printing. We guarantee customer satisfaction on every single product we provide.
FAQ
1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset Plates, inks, blankets, postpress packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. What is the lead time?
Usually 20-30 days, and we will try our best to meet your demands.
3. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
