Description
Features
Multiple cassette autoloader
inline plate punch system for your reference
laser diodes or laser valve for your reference
super fast, super high resolution, and all automatic
Autoloader description

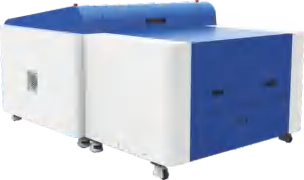

Multiple cassette unit (MCL-8): 400 plates
(4×100 plates/cassette)
Large-capacity autoloader (APL-8):1200,1500,2000 plates(optional)
Technical data
| T-800 Q (F, V, X)Specifications |
| Model | T800QF | T800QV | T800QX |
| Exposing Mothod | External Drum |
| Imaging System | 825nm, 256 laser valve |
| Throughput | 35plates/hour | 45plates/hour | 55plates/hour |
| | 1030mm x 800mm, 2400dpi, Plate sensitivity 120mj/cm² |
| Plate Sizes | Max.1163mm x 940mm
Min.400mm x 300mm |
| Plate Thickness | 0.15mm, 0.30mm |
| Resolution | Standard: dual resolutions 2400dpi and 1200dpi or optional 2540dpi and 1270dpi. Variable resolution option: maximum up to 10000dpi at fast scan direction |
| Repeatablity | 0.01mm |
| Interface | Optical Fiber(Fiberway)/GB Ethernet |

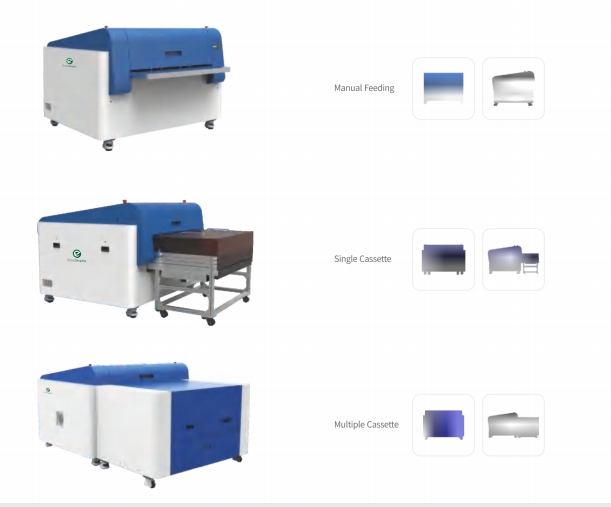

| Plate Loading | Standard: Single cassette Autoloader or multi-cassette Autoloader(four cassette) |
| Auto slip paper collection bin | Included in autoloader |
| Bridge to processor | included |
| Punch System | Optional: internal punching(maximum four sets of plate holes) |
| Net Weight | CTP: 1200kg, Simplified Autoloader: 200KG, Multi-cassette Autoloader: 570KG |
Machine Size
(WxLxH)mm | 1,537×1,976×1,340mm |
| Power Supply | CTP(single phase:220V, Max power(Peak Value): 4KW) Simplified Autoloader(single phase:220V; Max power(Peak Value): 900W)) Multi-cassette Autoloader(single phase:220V; Max power(Peak Value): 1100W)) |
Operation
Environment | recommended:21-25℃, allowable temperature: 15-30℃,relative humidity:40-70% |
256 laser valve technology

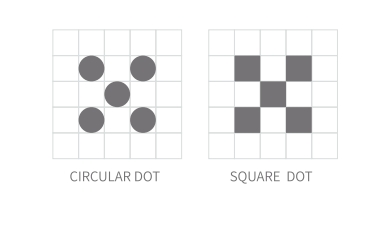

1. SQUARE DOT IMAGING,FINENESS AND PRECISION 10TIMES IMPROVED
The square dot with sharp edge feature and a rectangular step-shapeddistribution of energy used in 256-channel spatial light modulatortechnology makes the image clearer, 10 times more accurate than 200lpiAM screening and the color saturation is increased by over 21%.Inaddition,AMSKY 256-channel spatial light modulator technology canaccurately match the resolution of the actual file in the circumferencedirection, and adjust the length and width ratio of square dot to achieveperfect variable resolution printing.

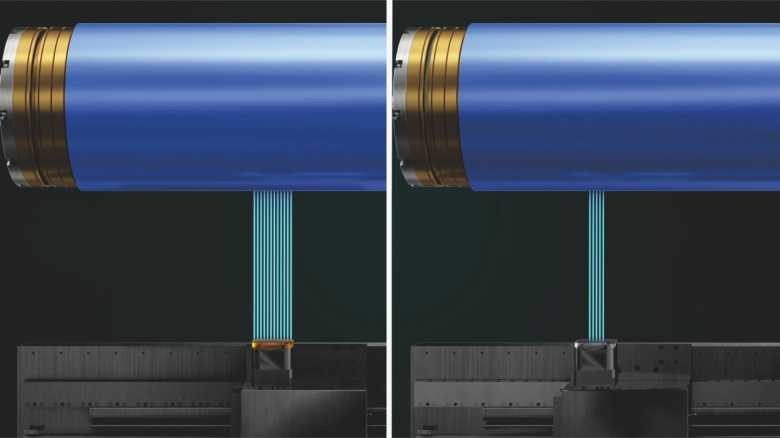

2. HIGHER EFFICIENCY, LOWER LOSS-OUTPUT SPEEDDOUBLED
The 256-channel spatial light modulator technology can generates180-320 channels of small laser beams simultaneously, which breaksthrough the limits of conventional optical fiber technology for CTPand makes output speed twice as fast as the fiber technology. Thistechnology not only realizes rapid plate making, but also dropsdrum speed to 300-500rpm, only 30%-50% of the conventionaloptical fiber CTP Thanks to the 256-channel spatial light modulator,the CTP has the advantages of stability, lower energy consumptionand small erosion, etc.
