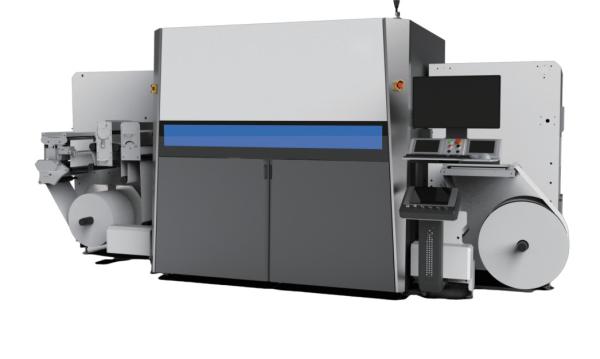

High-Precision 1200dpix1200dpi Inkjet Digital Roll to Roll Label Printer
Model: LABEL Modular 330 HD
Features:
Highly flexible feeding system:
Feeding unit for inkjet digital printing system, with high flexibility, suitable for all materials for 80-330mm wide label printing: film (PET, BOPP, PE, BOPA), label stock (PE label), pre-pressed materials (PET, ALU, PE) , paper, among others.
Stable and high-speed printing unit:
Imported high-precision industrial print head has higher fire ignition frequency and service life, resolution up to 1200 X 1200 dpi, guaranteed excellent print quality.The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solves the problem of printing registration, and makes the printed matter more aesthetic.
High quality UV eco-friendly Ink:
Benefit from the excellent ink formula, GIP's UV eco-friendly ink can still achieve excellent stability while ensuring environmental protection.Broad color gamut UV ink, vivid colors, with the Agfa color management system, can accurately restore the Pantone database colors.
AGFA APOGEE workflow software system:
The fully integrated AGFA Apogee prepress workflow system ensures the highest level of reliability while making equipment operation easier, good for production.
Automatic winding and unwinding system:
Effectively prevent the substrate from shifting, ensure the orderliness of the winding and unwinding system and achieve non-stop production for a long time.High linkage winding system, fully automated, to maximize automated production.
Unique print head control system:
Each print head has its own board to control, makes printhead printing more efficiency and easier to maintain.
Up to 9 color channels:
Provide variety color options. Standard configuration: CMYK+ white (optionally available as double White), can add 3 sets of spot colors.
Specification:
| Model | Ecoo Label Modular 330 HD |
| Printing Technology | Piezoelectric Inkjet |
| Print Method | Roll to Roll, One -Side |
| Color Configuration | CMYK, CMYK+W, CMYK+W+OGV |
| Number Of Channels | 9 |
| Maximum Speed | 70m/min9 |
| Resolution | 1200 x1200 dpi |
| Ink Type | UV Ink |
| Curing Method | UV LED |
| Media Width | 110-330mm |
| Maximum Print Width | 320m |
| Media Thickness | 50-400um |
| Media Type | PET, BOPP, PE, BOPA PP, Coated paper, Synthetic paper, Art paper, etc |
| Maximum Media Roll Diameter | 600 mm |
| Power supply | 380V |
| Power | 30kw |
| Compressed air | >6.5MPa |
| Air consumption | >10L/min |
| Operating environment | Temperature: 20ºC-27ºC, Humidity: 40%-70% relative humidity |
| Skew Adjustment System | yes |
| Electrostatic Dust Removal | yes |
| Water Cooling System | yes |
