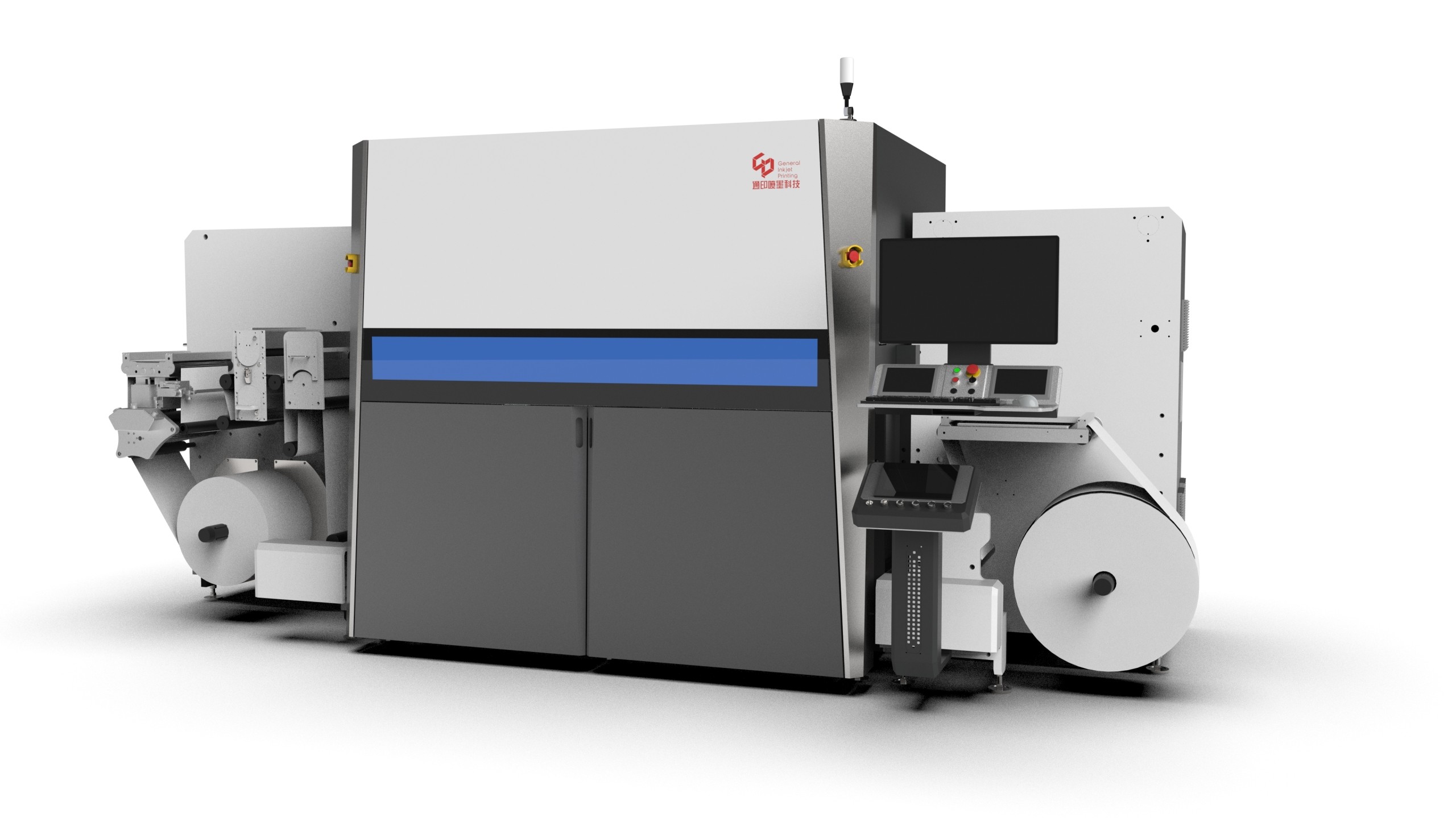

Digital inkjet printing system LABEL Modular 330 HD
Features
1 New generation of imported high-precision printhead, the maximum resolution up to 1200dpix1200dpi.
2 Modular production process collocation meets complex requirements for label printing.
3 Combined structure, can be flexibly configured according to the actual production process.
4 Coating, Printing, Varnishing, Foil-stamping, One-click production.
5 High efficiency digital label printer with a small cover area.
Product description
| ECOO Label Modular 330 HD |
| Model | Ecoo Label Modular 330 HD |
| Printing Technology | Piezoelectric Inkjet | | Print Method | Roll to Roll, One -Side | | Color Configuration | CMYK, CMYK+W, CMYK+W+OGV | | Number Of Channels | 9 | | Maximum Speed | 70m/min | | Resolution | 1200 x1200 dpi | | Ink Type | UV Ink | | Curing Method | UV LED | | Media Width | 110-330mm | | Maximum Print Width | 320m | | Media Thickness | 50-400um | | Media Type | PET, BOPP, PE, BOPA PP, Coated paper, Synthetic paper, Art paper, etc | | Maximum Media Roll Diameter | 600 mm | | Power supply | 380V | | Power | 30kw | | Compressed air | >6.5MPa | | Air consumption | >10L/min | | Operating environment | Temperature: 20℃-27℃, Humidity: 40%-70% relative humidity | | Skew Adjustment System | yes | | Electrostatic Dust Removal | yes | | Water Cooling System | yes | |
| |
Video link:https://youtu.be/AW5ypZ1V-BU?si=lDCoy-NyYjWi_pup
Our Advantages
New generation printheads for1200dpi
The new generation imported high-precision printheads has a higher lifetime, maximum resolution up to 1200x1200dpi. It enhanced continuous, high-speed, high-quality printing stability. Color level transition is more natura lwhich can achieve high-definition, realistic color printing quality.
Agfa Asanti software workflow system(Powered by Agfa Asanti)
Easy to use, Asanti allows you to trace all prepress steps, and smart visualized operation interface keeps you updated on current production status. The latest technology, Asanti adopts the latest Adobe PDF printing engine (APPE), ensuring reliable, high-quality rendering, precise file processing. Built-in Preflight Module, Automatically checks files at any time to align with printing requirements.
High quality environmental protection UV inks
Thanks to superior ink formulas, General Inkjet Printing's UV inks can achieve eco-friendly performance with superior stability. UV-LED curing technology not only reduce drying time but also lowers power consumption, thus further saving in production costs. UV inks don't contain any solvents, making the print smell extremely low and lower than traditional prints. As UV LED lamps don't contain mercury, there is no need for mercury disposal or any related Costs. A wide range of material compatibility to ensure business diversity
After Sale Servise
All of our technicians have over 10-20 years experience.
Rich experience in installation, repair, and maintenance overseas.
After-sales staff Whatsapp/Wechat online 24/7.
Guarantee to provide after-sales service for any machine for its whole user life.
Certificate
Packing & Shipping
FAQ
1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing,
including prepress, pressroom and post press, focusing on packaging printing and book printing.
We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.
2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.
3. What is your warranty?
One year for machine and printing head if use our ink. One year for machine only if do not use our ink.
4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.
5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge
and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
