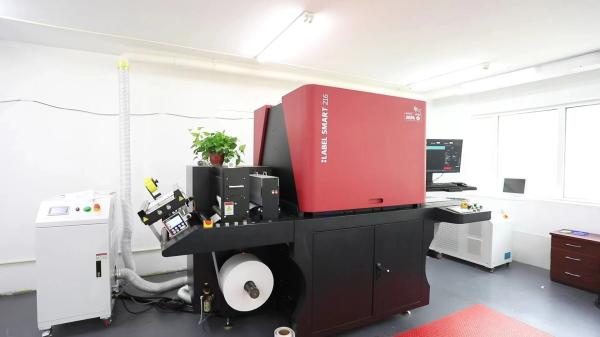

50m/min Digital Inkjet Printing System Label Printer Machine

  • 1
  • 2
  • 3

Brand Name : EcooGraphix

Model Number : EcooSpark

Certification : ISO9000, CE

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500 Sets/Year

Delivery Time : 45 Days

Packaging Details : Standard Export Packing

Power : 30kw

Printing Technology : Piezoelectric Inkjet

Print Method : Roll to Roll, One -Side

Color Configuration : Support up to 8 Colors

Number of Channels : 8

Resolution : 600X600 Dpi/600 X1200 Dpi

Ink Type : UV Ink

Curing Method : UV LED + Mercury Lamp

Media Width : 150-350mm

Contact Now

Product Description

Digital inkjet Printing System Label Printer Machine Modular 330
Product Features
1 Modular production process collocation meets complex requirements for label printing.
2 Combined structure, can be flexibly configured according to the actual production process.
3 Coating, Printing, Varnishing, Foil-stamping, One-click production.
4 High precision printing quality.
5 A cost-effective digital printer for label printing.
Product Specification
50m/min Digital Inkjet Printing System Label Printer Machine50m/min Digital Inkjet Printing System Label Printer Machine50m/min Digital Inkjet Printing System Label Printer Machine
Digital Label Printer Machine
Model Ecoo Label Modular 330
Printing Technology Piezoelectric Inkjet
Print Method Roll to Roll, One -Side
Color Configuration Support up to 8 colors
Number Of Channels 8
Maximum Speed 50m/min(CMYK); 25 m/min(CMYK+W)
Resolution 600x600 dpi/600 x1200 dpi
Ink Type UV Ink
Curing Method UV LED + Mercury lamp
Media Width 150-350mm
Maximum Print Width 324mm
Media Thickness 50-400um
Media Type

PET, BOPP, PE, BOPA PP, Coated paper, Synthetic paper, Art paper, etc
Maximum Media Roll
Diameter
 700 mm
Power supply 380V
Power 30kw
Compressed air >6.5MPa
Air consumption >10L/min
Operating environment Temperature: 20ºC-27ºC, Humidity: 40%-70% relative humidity
Skew Adjustment System yes
Electrostatic Dust
Removal
 yes
Water Cooling System yes
Coating Unit optional
Digital Varnishing optional
Cold Foil Stamping optional
Hot Foil Stamping optional
Visual inspection optional
50m/min Digital Inkjet Printing System Label Printer Machine50m/min Digital Inkjet Printing System Label Printer Machine50m/min Digital Inkjet Printing System Label Printer Machine50m/min Digital Inkjet Printing System Label Printer Machine
Quality Control
The professional control department is responsible for all the machines.
Full checking list including mechanical and electrical detection on the machine.
Strict standards for registration and over 24 hours of non-stop running on each machine.
Follow the policy of 'One person responsible for one machine',' Claim responsibility if the machine has assembled problem'.

​​​​​​​Service
All of our technicians have over 10-20 years experience.
Rich experience in installation, repair, and maintenance overseas.
After-sales staff Whatsapp/Wechat online 24/7.
Guarantee to provide after-sales service for any machine for its whole user life.
